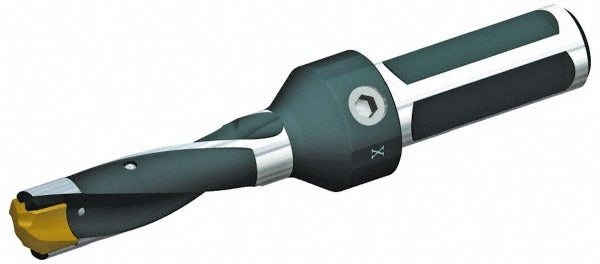

Kennametal 1505127 Replaceable-tip Drill Ksem Series

Product Description

The KENNAMETAL 1505127 is a replaceable-tip drill body engineered for precision hole-making in metalworking applications. Designed around the KSEM platform, this drill body accepts KSEM1125 insert tips at insert seat size 7, allowing worn or damaged cutting tips to be swapped without replacing the entire tool body. The drill covers a diameter range of 28.58 to 29.08 mm (1.1252 to 1.1449 inches) and delivers a maximum drill depth of 90 mm (3.54 inches) at a 3xD depth-to-diameter ratio. Through-coolant capability keeps the cutting zone clear and extends insert life at production feed rates. The 31.75 mm Weldon Flat shank provides positive rotational drive in compatible toolholders. Overall length is 228.6 mm (9 inches). Machinists and CNC operators in job shops and production environments are the primary installers.

This drill body is suited for use in CNC machining centers and turning centers equipped with driven tooling where consistent, repeatable bore diameters in the 28.58 to 29.08 mm range are required. The 3xD depth ratio makes it appropriate for general through-hole and blind-hole work in steel, cast iron, and similar machinable metals. The through-coolant design supports high-pressure coolant delivery systems commonly found in production machining environments. The Weldon Flat shank interfaces with standard Weldon-style toolholders, a widely used retention system in horizontal and vertical machining centers.

Key Features

• Accepts KSEM1125 replaceable insert tips at seat size 7 for fast tip changes without full tool replacement
• Through-coolant construction with NPT coolant hole threading at body side (1/8-27 NPT) and shank end (1/4-18 NPT)
• Diameter range 28.58 to 29.08 mm covering 1.1252 to 1.1449 inches
• Maximum drill depth 90 mm (3.54 inches) at 3xD depth-to-diameter ratio
• 31.75 mm Weldon Flat shank for positive drive and secure toolholder retention
• Flute length 125.48 mm (4.94 inches) supporting efficient chip evacuation

Compatibility

Designed for use with KSEM1125 series replaceable drill tip inserts at insert seat size 7 within the KENNAMETAL KSEM drill system. Requires a Weldon Flat toolholder sized for a 31.75 mm shank diameter.

Installation Notes
