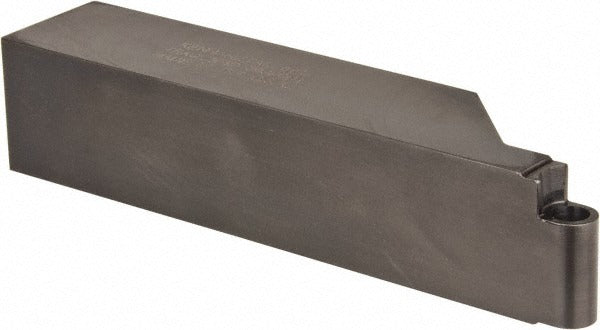

Kennametal 1291031 Lh Trao Turning Toolholder RC..46

Product Description

The KENNAMETAL 1291031 is a left-hand TRAO-style indexable turning toolholder designed for precision metal-cutting operations on CNC and manual lathes. Built on the K-Lock series platform, it features a 1.25-inch by 1.25-inch square shank and an overall length of 6 inches. The holder accepts RC..46 series inserts held by a clamp-style mechanism and runs a neutral rake angle of 0 degrees. Machined from steel, it delivers the rigidity required for consistent turning performance. This toolholder is intended for use by machinists and toolroom technicians in production and job-shop environments.

The 1291031 is suited for external turning applications where a left-hand cutting orientation is required. The neutral rake geometry makes it a versatile choice across a range of workpiece materials and cutting conditions. The K-Lock clamping system provides secure insert retention during interrupted and continuous cuts. Coolant-through capability is not included in this holder configuration. It is a single-purpose, non-multi-use toolholder matched to RC..46 insert geometry with a 0.5-inch inscribed circle.

Key Features

• Left-hand TRAO toolholder style for left-hand turning operations
• K-Lock series clamping system for secure, repeatable insert seating
• Neutral rake angle (0 degrees) for broad material compatibility
• Accepts RC..46 series inserts with 0.5-inch inscribed circle
• 1.25-inch x 1.25-inch steel shank for rigid setup in standard tool blocks
• 6-inch overall length suitable for common lathe turret and block configurations

Compatibility

Designed to accept RC..46 series indexable inserts with a 0.5-inch inscribed circle. Compatible insert designation per supplier data: RC.. 46.. (Kennametal coating classification). Verify insert geometry and corner radius against your specific KENNAMETAL insert catalog before ordering.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician with the machine powered down and in a locked-out state. Secure the shank firmly in the tool block or turret to the machine manufacturer's specified clamping torque before operation. Ensure the insert is fully seated and the clamp screw is tightened according to the insert manufacturer's guidelines before taking a cut. Follow applicable shop safety procedures and machine guarding requirements during setup.
