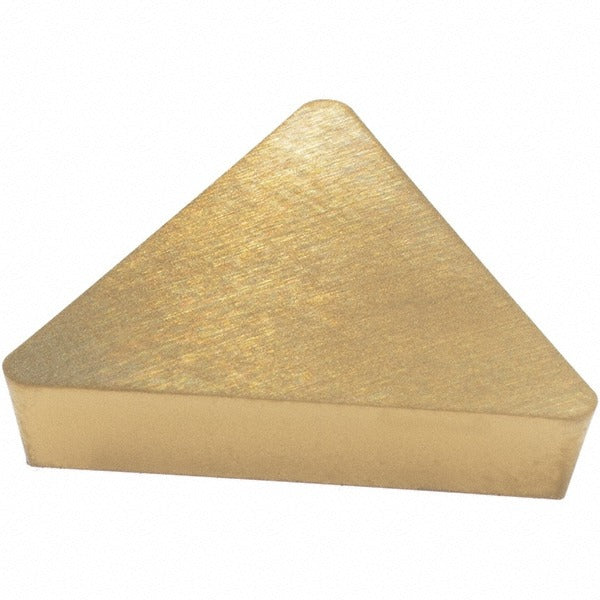

Kennametal 1162668 Turning Insert TPU322 KC730 Carbide

Product Description

The KENNAMETAL 1162668 is a solid carbide turning insert in the KENDEX series, designed for precision metal cutting in CNC and manual turning, facing, and boring operations. It features a triangular (T) shape with a 60-degree included angle, a 3/8 inch inscribed circle, and a 1/32 inch corner radius. The insert is coated with TiN via a PVD coating process for improved wear resistance. Neutral hand orientation and a positive rake angle make this a versatile choice for high-production turning work on steel, stainless steel, and cast iron. Three cutting edges are available per insert, extending tool life across multiple setups.

The 1162668 insert is suited for turning, facing, and boring applications in both production and job-shop environments. Its KC730 grade is engineered for high wear resistance to moderate toughness across steel (P class), stainless steel (M class), and cast iron (K class) workpiece materials. The flat top chip breaker geometry and honed cutting edge style make it appropriate for medium to finish-cut operations with a maximum depth of cut of approximately 0.049 inches (1.25 mm). It is clamp-held and conforms to both ANSI and ISO insert standards, with ANSI code TPU322 and ISO code TPU160308.

Key Features

• Solid carbide substrate with TiN PVD coating for wear resistance on steel and stainless steel
• Triangular insert shape with 60-degree included angle and three usable cutting edges
• 1/32 inch corner radius with honed cutting edge for finish and medium turning work
• Flat top chip breaker geometry with positive rake angle for efficient chip evacuation
• Neutral hand orientation — compatible with both right- and left-hand toolholders
• Conforms to ANSI (TPU322) and ISO (TPU160308) insert geometry standards

Compatibility

Designed as a clamp-style replacement insert for KENDEX series toolholders accepting TPU322 or ISO TPU160308 geometry. Suitable for turning, facing, and boring of steel, stainless steel, superalloys, and titanium workpiece materials.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and de-energize the machine spindle before indexing or replacing inserts. Use the appropriate torx or hex key specified by the toolholder manufacturer when tightening the clamp screw — do not overtighten. Inspect the toolholder seat and clamp for wear or damage before seating a new insert.
