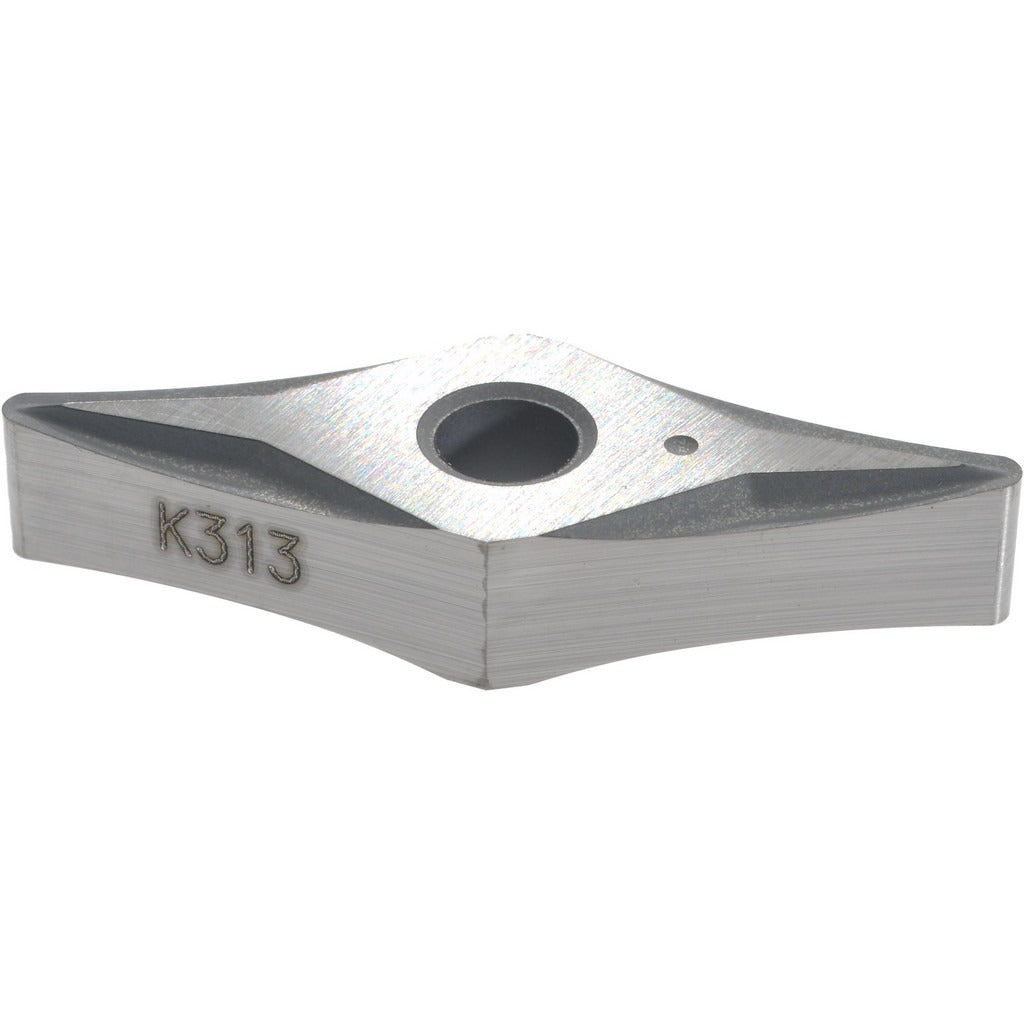

Kennametal 1161106 Turning Insert VNGP332K K313 Carbide

Product Description

The KENNAMETAL 1161106 is a solid carbide, uncoated turning insert with an ANSI designation of VNGP332 and ISO designation VNGP160408, belonging to the KENLOC series. This insert features a 35-degree diamond (rhombic) shape, a neutral hand orientation, and a honed cutting edge style. With four usable cutting edges, a 3/8-inch inscribed circle, and a 1/32-inch corner radius, it is engineered for high wear-resistance across a range of turning, facing, boring, back turning, and back boring operations. The K313 grade is a solid carbide uncoated substrate suited for demanding cutting applications. Licensed machinists and CNC turning specialists are the primary installers of this insert type.

This insert is designed for use in external and internal turning operations on CNC lathes and manual turning machines. It is well-suited for machining non-ferrous metals, superalloys, titanium, stainless steel, cast iron, and aluminum. The KENLOC series insert seats into compatible negative-rake toolholders using a clamp and pin holding method. Its primary workpiece material codes are P, M, K, N, and S, covering a broad range of material groups from stainless steel requiring high wear-resistance to aluminum and non-ferrous applications. This makes it a versatile option for job shops and production environments running varied material types.

Key Features

• Solid carbide, uncoated (bright) substrate in Kennametal K313 grade for high wear-resistance and toughness
• 35-degree diamond (rhombic) V-shape insert with four cutting edges, extending tool life and reducing cost per edge
• Neutral hand orientation compatible with both left-hand and right-hand toolholders
• K chip breaker geometry with a 10-degree rake angle and honed cutting edge for controlled chip formation
• Clamp and pin holding method for secure seating in KENLOC-compatible toolholders
• Multi-use application: turning, facing, boring, back turning, and back boring
• Meets ANSI and ISO standards; ANSI size code 332, ISO size code 160408

Compatibility

Designed for use in KENLOC-series negative-rake toolholders that accept VNGP-style inserts with clamp and pin holding. Compatible with ANSI insert code VNGP332 and ISO insert code VNGP160408. Suitable for turning, facing, boring, back turning, and back boring operations on workpiece material groups P, M, K, N, and S.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Before changing inserts, ensure the machine spindle is fully stopped and the machine is in a safe, locked-out state per applicable shop safety procedures. Seat the insert fully into the toolholder pocket and secure with the clamp and pin per the toolholder manufacturer's torque specifications. Inspect the insert seat and clamp components for wear or debris before seating a new insert to ensure proper clamping force and runout.
