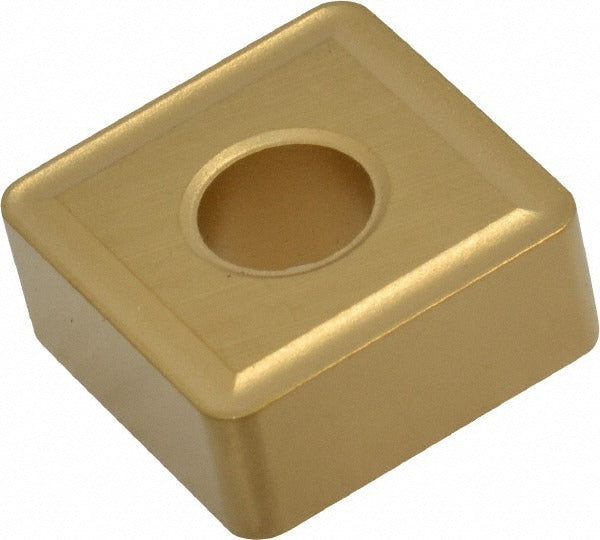

Kennametal 1160262 SNMG544 KC850 Carbide Turning Insert

Product Description

The KENNAMETAL 1160262 is a SNMG544 square turning insert in the KENLOC series, manufactured from solid carbide with a multilayer CVD coating of TiC, TiCN, and TiN. Grade KC850 delivers a balance of moderate wear resistance and toughness, making it well suited for interrupted and continuous cuts in steel and stainless steel. The insert features a 5/8-inch inscribed circle, a 1/16-inch corner radius, and a negative rake geometry with a chamfered and honed cutting edge. Eight available cutting edges reduce tooling cost per edge. The chip breaker geometry is rated for medium machining operations across a range of workpiece materials.

This insert is designed for turning, facing, and boring operations on CNC and manual lathes. Primary workpiece materials include steel (ISO P), stainless steel (ISO M), cast iron (ISO K), and special or super alloys (ISO S). The KENLOC clamping system accommodates both clamp and pin holding methods. Typical applications are medium-depth roughing and semi-finishing passes where a consistent edge and reliable chip control are required in production environments. The insert conforms to ANSI and ISO standards, simplifying cross-referencing in tool management systems.

Key Features

• KC850 grade with multilayer CVD TiC/TiCN/TiN coating for wear resistance and toughness across multiple material groups
• 8 cutting edges per insert for extended tool life and lower cost per edge
• Negative rake, negative side clearance (N clearance code) geometry for heavy-duty clamping stability
• Medium chip breaker profile supports turning, facing, and boring in a single insert geometry
• ANSI insert code SNMG544 and ISO insert code SNMG150616 for straightforward catalog cross-referencing
• Compatible with clamp and pin holding methods in KENLOC-style toolholders

Compatibility

Designed for use in KENLOC-series toolholders accepting SNMG544 geometry inserts. Compatible with clamp-style and pin-style insert holding methods. Fits toolholders designed to the ANSI SNMG544 or ISO SNMG150616 insert standard.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the machine spindle before seating or replacing inserts. Use the correct torx or hex key to the toolholder manufacturer's specified procedure when tightening the clamp screw; do not overtighten. Inspect the insert seat and clamp components for wear or debris before installing a new edge to ensure proper seating and runout.
