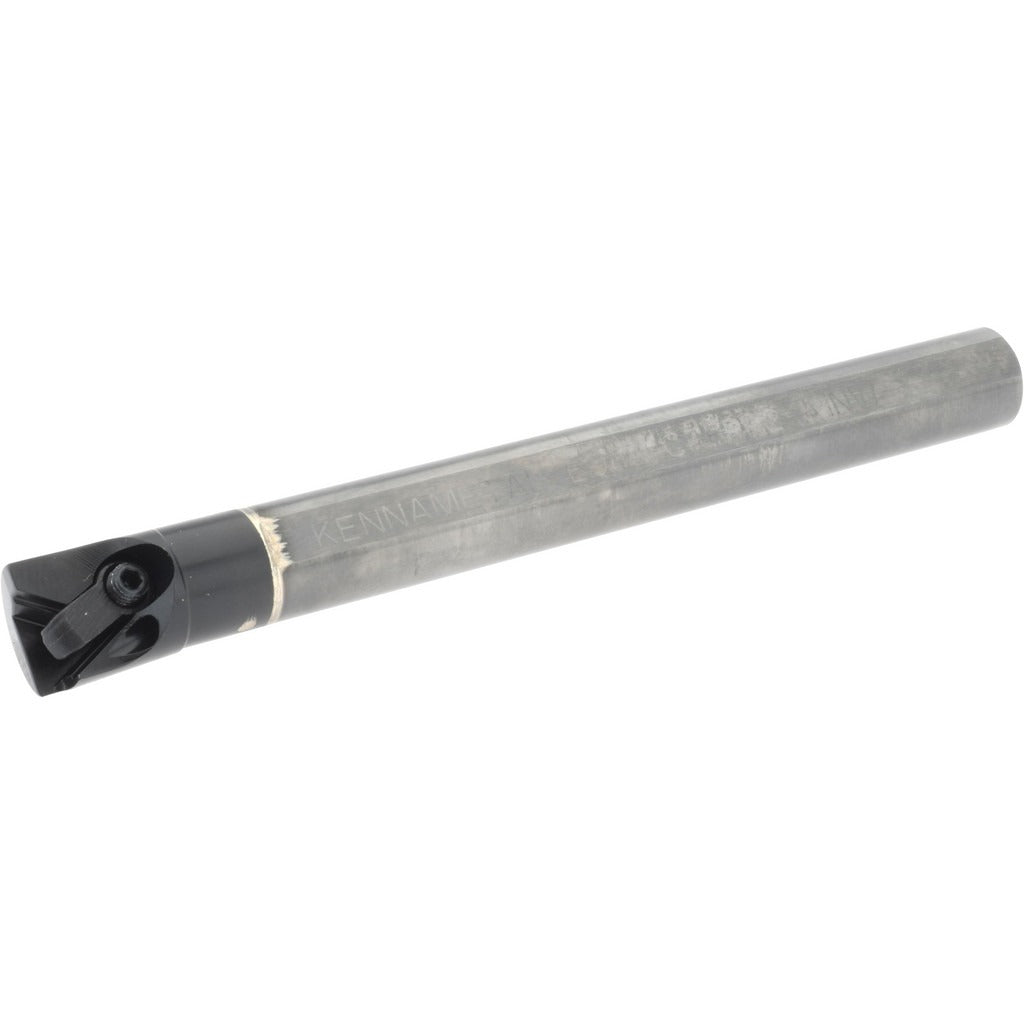

Kennametal 1152584 Indexable Boring Bar 1/2 Inch Shank

Product Description

The KENNAMETAL 1152584 is a solid carbide indexable boring bar designed for internal turning and boring operations on CNC lathes and machining centers. Built to the E-CTFP toolholder style, it accepts TP-series clamp-held inserts and delivers a positive 5-degree rake angle for efficient chip formation. The 1/2-inch shank diameter and 5-inch overall length suit a range of small-bore applications. A built-in coolant-through channel with a 0.190-inch coolant hole diameter supports direct cutting-zone cooling, extending insert life and improving surface finish. Installation and tool changes are handled by machinists and CNC toolroom technicians.

This boring bar is suited for precision internal boring in both production and job-shop environments. The minimum bore diameter of 0.600 inches (15.24 mm) makes it appropriate for small-diameter bores where rigidity and tool reach are critical. The solid carbide body resists deflection at depth, and the clamp insert-holding method allows fast indexing without disturbing the tool setup. It is part of the Kendex series, which targets close-tolerance boring with replaceable triangular inserts.

Key Features

• Solid carbide body provides maximum rigidity and minimal deflection in small-bore applications
• Coolant-through design with 0.190-inch coolant hole delivers cutting fluid directly to the insert tip
• Positive 5-degree rake angle reduces cutting forces and promotes clean chip evacuation
• Clamp insert-holding method enables fast, repeatable indexing of TP-series inserts
• Right-hand cut orientation for standard CNC lathe and boring mill setups
• 1/4-inch insert inscribed circle accommodates a common, widely available insert geometry

Compatibility

Accepts TP-series triangular inserts with a 1/4-inch inscribed circle and 1/8-inch insert thickness. Toolholder style is E-CTFP. Compatible inserts are clamped, not screw-on. Specific insert grades and chip-breaker styles are selected based on workpiece material and application requirements.

Installation Notes

Install and remove boring bars with the spindle fully stopped and the machine in an e-stop or lockout-tagout state per shop safety procedures. Secure the shank in a compatible boring bar holder or turret station to the full recommended grip length to minimize overhang-induced deflection. Verify insert seating and clamp torque before initiating a cut. Coolant-through setups require that the machine coolant circuit be connected and purged before use.
