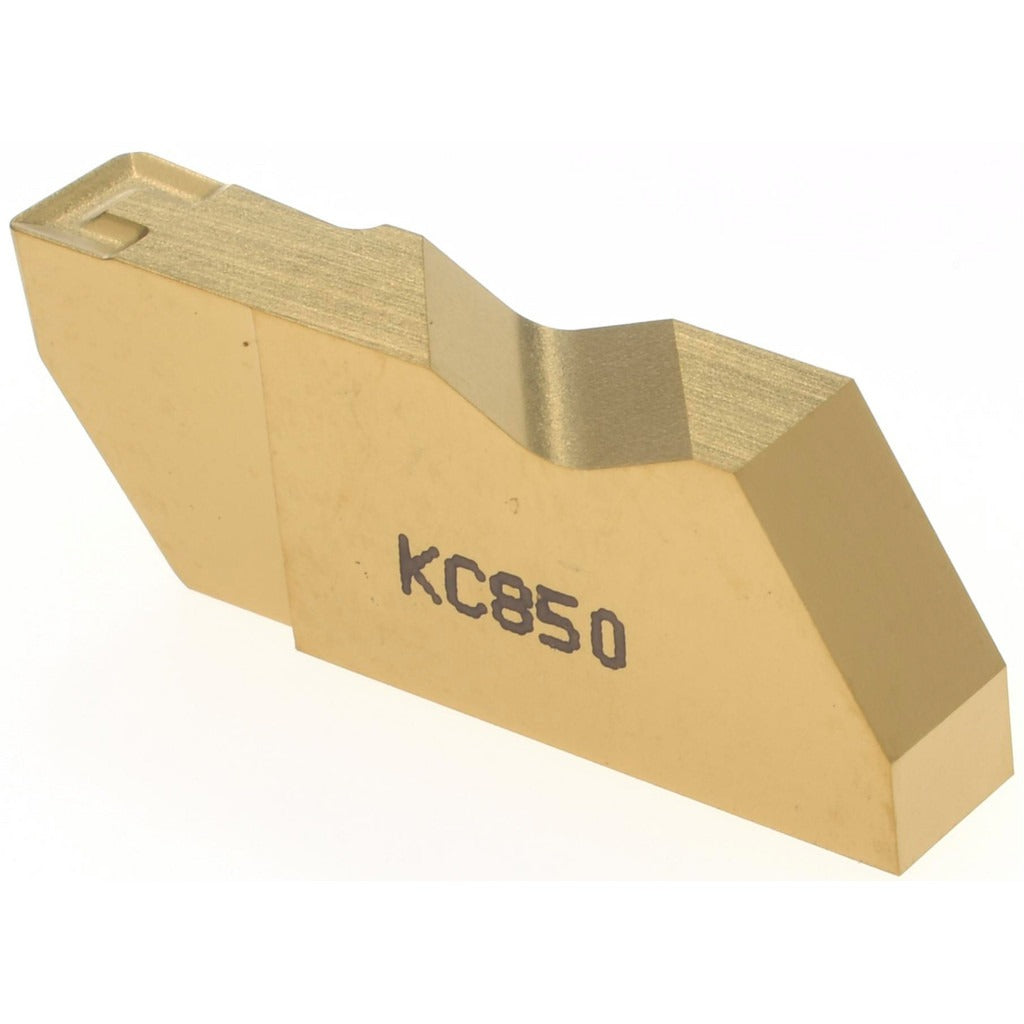

Kennametal 1114906 Grooving Insert KC850 Solid Carbide

Product Description

The KENNAMETAL 1114906 is a solid carbide grooving insert designed for external grooving and turning operations on CNC lathes and turning centers. It carries a KC850 manufacturer grade with a CVD-applied TiC, TiCN, and TiN multilayer coating, delivering wear resistance and heat stability during continuous or interrupted cuts. The insert has a 4.80 mm (0.189 inches) cutting width and a maximum depth of cut of 6.35 mm (0.250 inches). A positive rake angle of 10 degrees and a K-style chip breaker promote controlled chip flow in a range of steel and alloy machining applications. Installed by machinists and tool crib technicians, this insert fits the Top Notch toolholder system.

This insert is suited for grooving, parting, and profiling operations in both production and job-shop environments. The right-hand configuration places it in standard right-hand Top Notch toolholders used on conventional and CNC turning equipment. The NGD insert style with a 55-degree included angle and a 0.57 mm (0.0225 inch) corner radius makes it applicable to general-purpose grooving where dimensional consistency and surface finish are priorities. Material grades C5 and C6 indicate suitability for steel and cast iron workpieces at moderate to high cutting speeds.

Key Features

• KC850 grade with CVD multilayer TiC, TiCN, and TiN coating for extended tool life in steel and cast iron
• 4.80 mm cutting width with a maximum depth of cut of 6.35 mm
• Positive 10-degree rake angle with K chip breaker for controlled chip evacuation
• 0.57 mm corner radius for reduced workpiece stress at groove edges
• Top Notch series compatibility for quick, repeatable insert indexing
• Right-hand orientation for standard turning setups

Compatibility

Designed for use with Top Notch series right-hand grooving toolholders accepting NGD-style inserts. The MSC and manufacturer cross-reference number for this insert is NGD3189R/LK.

Installation Notes

Installation should be performed by a qualified machinist with the machine in a full stop, locked-out condition before changing inserts. Use the correct Top Notch clamping screw and torque driver as specified by the toolholder manufacturer - do not overtighten with standard hex keys. Inspect the insert pocket and clamping components for wear or debris before seating the insert. Verify insert orientation and secure clamping before resuming cutting operations.
