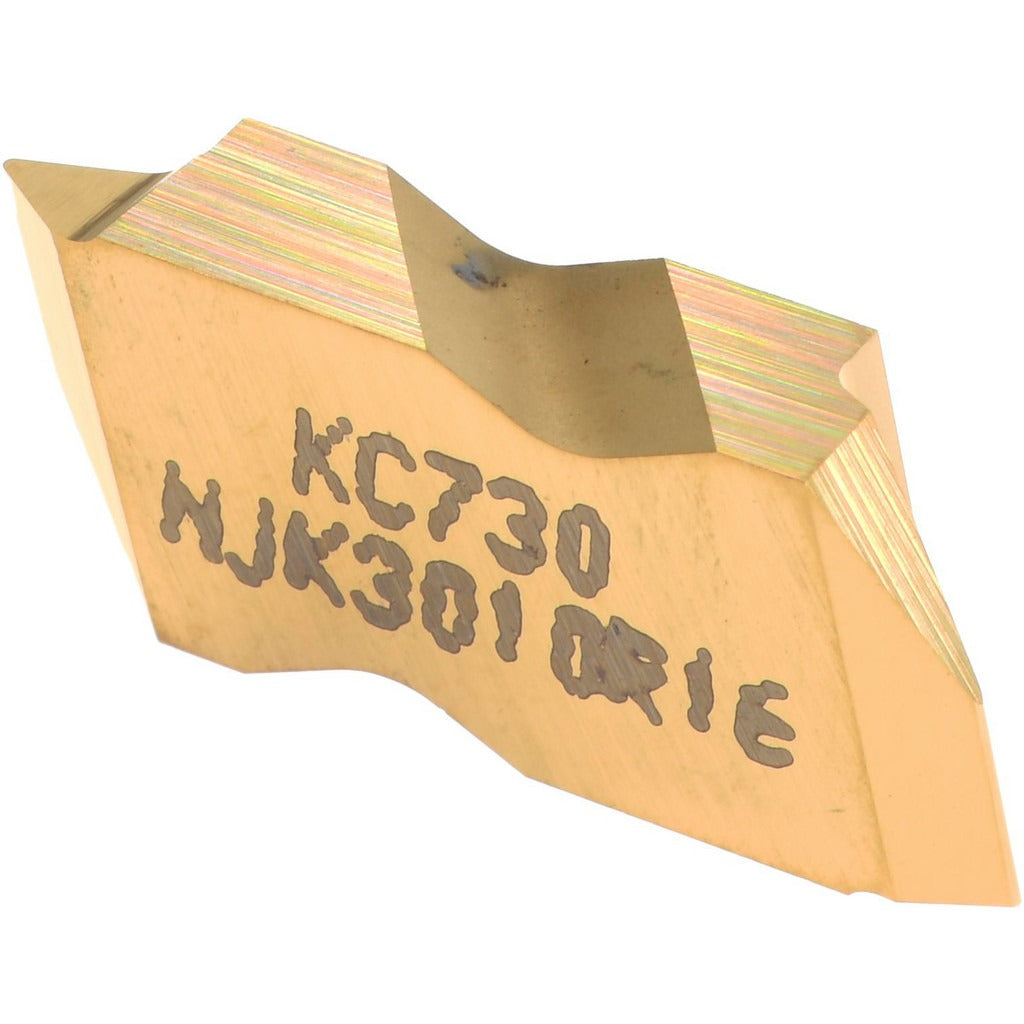

Kennametal 1114372 Threading Insert 16 Tpi KC730 Carbide

Product Description

The KENNAMETAL 1114372 is a carbide threading insert designed for external thread cutting on CNC lathes and turning centers. Carrying the KC730 manufacturer grade with a PVD-applied Titanium Nitride (TiN) finish, this insert delivers wear resistance and edge stability during single-point threading operations. It produces right-hand UNJ-standard external threads at 16 TPI with a 60-degree included angle. The corner radius measures 0.0099 inches (0.25 mm), and the insert thickness is 0.1949 inches (4.95 mm). Tip-to-top height is 0.1409 inches (3.58 mm). It fits the Top Notch insert system and is installed by machinists and CNC operators working in precision threading applications.

This insert is suited for threading operations in aerospace, defense, and general machining environments where UNJ thread forms are specified. The NJK insert style in size 3010 seats into compatible Top Notch toolholders. Material grades C2, C3, and C4 indicate suitability across a range of workpiece materials including carbon steels, alloy steels, and cast irons. Minimum order quantity is 5 pieces; each package contains 1 insert.

Key Features

• KC730 carbide grade with PVD Titanium Nitride coating for extended tool life
• 16 TPI external threading at 60-degree included angle for UNJ thread standard
• Right-hand cut orientation, NJK insert style, size 3010
• Corner radius of 0.0099 inches (0.25 mm) for precise thread form accuracy
• Top Notch series compatibility for positive insert seating and repeatability
• Applicable material grades C2, C3, and C4 for broad workpiece material range

Compatibility

Designed for use in Top Notch series toolholders accepting NJK-style inserts in size 3010. Specific toolholder compatibility should be verified against KENNAMETAL Top Notch system documentation prior to ordering.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator with the machine fully stopped and the spindle locked before insert indexing or replacement. Use the appropriate Torx or insert-clamp wrench specified for the toolholder; do not use impact tools on clamping hardware. Inspect the insert pocket and clamp for debris or damage before seating the new insert. Follow the machine tool builder and toolholder manufacturer torque guidelines for the clamp screw.
