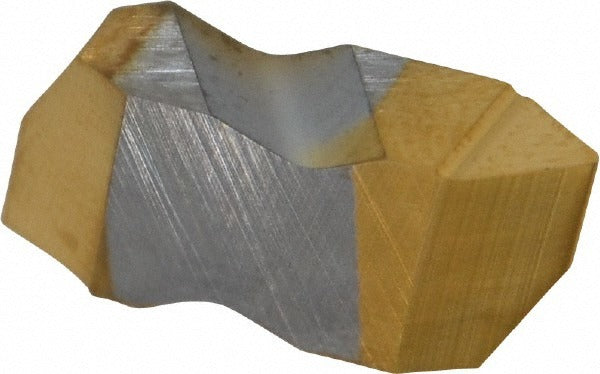

Kennametal 1114366 Threading Insert 12 Tpi KC730 Carbide

Product Description

The KENNAMETAL 1114366 is a carbide threading insert in the Top Notch series, designed for external thread cutting on precision machining applications. It carries the NJP3014R12 insert style designation and is manufactured from carbide with a Titanium Nitride (TiN) finish applied via PVD coating. The insert cuts at 12 TPI with a 60-degree included angle and a right-hand orientation. At 0.1949 inches thick and a corner radius of 0.0130 inches, it is built to hold tight tolerances on UNJ thread forms. Machinists and CNC operators working in aerospace, defense, and high-precision manufacturing environments are the primary users of this insert.

This insert is suited for external threading operations on UNJ thread forms, which are commonly specified in aerospace and military fastener standards. The KC730 grade is a PVD-coated carbide grade rated for material grades C2, C3, and C4, making it appropriate for use on a range of ferrous and non-ferrous workpiece materials. It fits Top Notch series toolholders designed for the NJP insert style and 3014 insert size. This insert is sold individually but carries a minimum order quantity of 5 units.

Key Features

• Carbide substrate with PVD-applied Titanium Nitride coating for wear resistance and extended tool life
• 12 TPI external thread pitch with 60-degree included angle for UNJ thread form cutting
• Right-hand cutting orientation, insert size 3014
• Corner radius of 0.0130 inches (0.33 mm) for controlled thread root geometry
• KC730 manufacturer grade rated for C2, C3, and C4 material classifications
• Top Notch series compatibility for positive insert retention in matching toolholders

Compatibility

Designed for use in Top Notch series toolholders accepting the NJP insert style in size 3014. Suitable for external UNJ threading at 12 TPI on compatible CNC lathes and turning centers.

Installation Notes

This insert is installed and replaced by machinists or CNC tooling technicians. Power down and lock out the machine before changing inserts. Use the correct torque wrench and seating procedure specified for the Top Notch toolholder in use. Inspect the toolholder pocket for damage or debris before seating a new insert to ensure proper clamping and thread accuracy.
