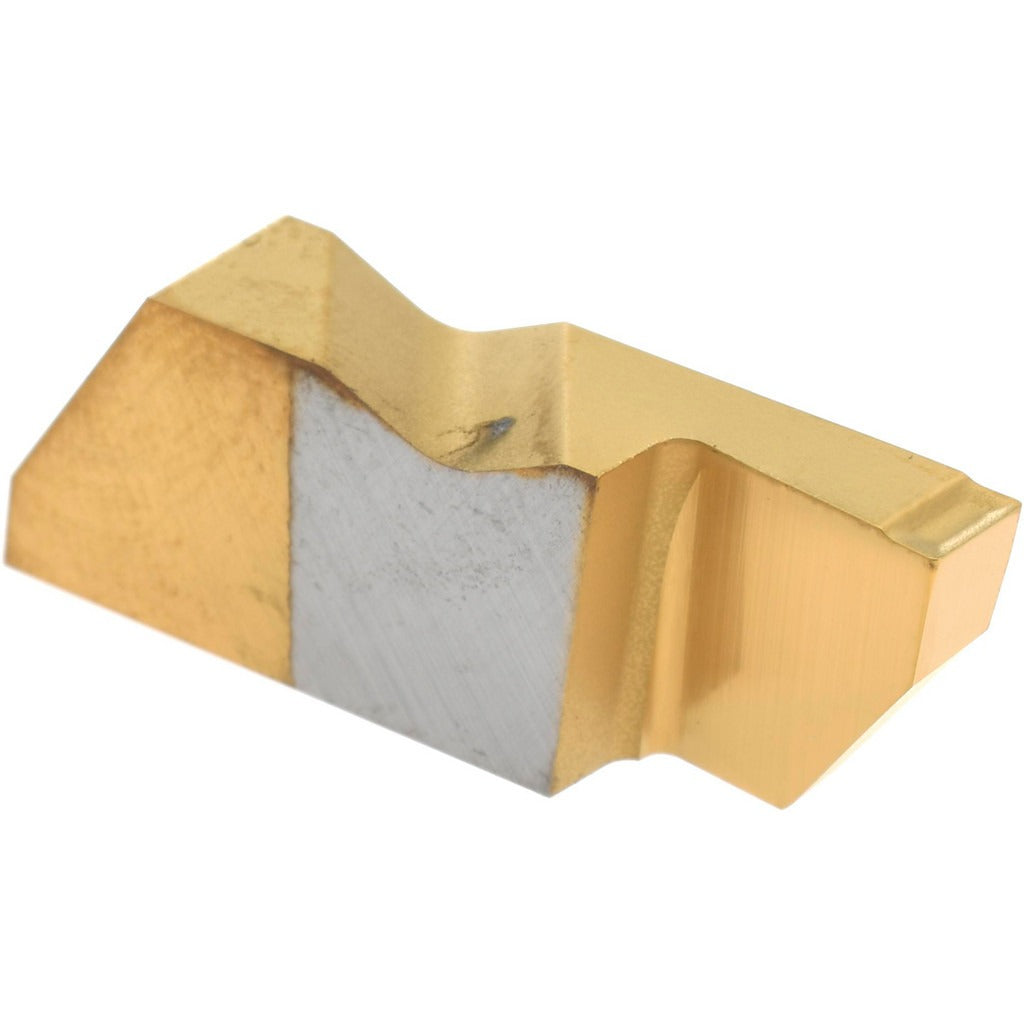

Kennametal 1114322 Grooving Insert KC730 Carbide Tin

Product Description

The KENNAMETAL 1114322 is a solid carbide grooving insert in the Top Notch series, designed for precise external grooving operations on CNC lathes and turning centers. It carries the KC730 manufacturer grade with a PVD-applied TiN coating for wear resistance in demanding cutting conditions. The insert features a right-hand cutting orientation, a 3.18 mm (0.1252 inch) cutting width, and a maximum depth of cut of 6.35 mm (0.2500 inch). The positive rake angle of 10 degrees and K-style chip breaker promote efficient chip evacuation. Installed by machinists and CNC operators, this insert is suited for production turning in metalworking environments.

This insert is intended for grooving applications on turning centers and lathes where controlled chip flow and dimensional accuracy are required. The Top Notch series designation indicates compatibility with Top Notch-style toolholders. It is applicable to material grades C2, C3, and C4, making it suitable for a range of steel and cast iron workpieces. The maximum depth of cut range spans 5.00 mm to 10.00 mm (0.2000 to 0.3000 inch), covering standard groove depth requirements in typical production turning scenarios.

Key Features

• KC730 grade solid carbide with PVD TiN coating for extended tool life
• 3.18 mm cutting width with a maximum depth of cut of 6.35 mm
• Positive 10-degree rake angle with K chip breaker for efficient chip control
• Right-hand cutting orientation for standard turning center setups
• Corner radius of 0.19 mm (0.0075 inch) for controlled groove geometry
• Compatible with material grades C2, C3, and C4

Compatibility

Designed for use with Top Notch-style grooving toolholders. Compatible with workpiece material grades C2, C3, and C4. Cross-reference manufacturer number NGD3125R/LK.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Always power down and lock out the machine before seating or replacing inserts. Use the appropriate torque wrench and manufacturer-specified clamping hardware for Top Notch-style holders to ensure proper insert retention. Inspect the insert pocket and clamping screw for wear before installation.
