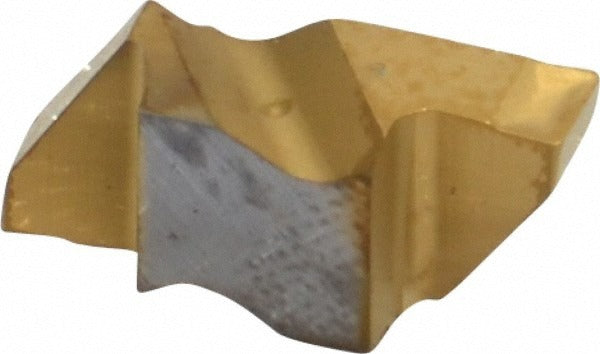

Kennametal 1114292 Grooving Insert KC730 Solid Carbide

Product Description

The KENNAMETAL 1114292 is a solid carbide grooving insert designed for precision external grooving and turning operations on CNC lathes and machining centers. Part of the Top Notch series, it carries the KC730 manufacturer grade and features a PVD-applied TiN coating for improved wear resistance and edge integrity. The insert delivers a cutting width of 2.39 mm (0.0941 inches) and a maximum depth of cut of 2.79 mm (0.1098 inches), making it well suited for shallow-to-medium groove profiles. The positive rake angle of 10 degrees reduces cutting forces and supports clean chip evacuation in a range of workpiece materials.

This insert is intended for right-hand grooving operations in production and job-shop environments. It fits toolholders in the Top Notch insert system and is appropriate for machining steel, cast iron, and non-ferrous alloys that fall within material grades C2, C3, and C4. The K-style chip breaker promotes controlled chip flow in interrupted and continuous cuts. Machinists working with tight tolerance groove requirements will find the 0.19 mm (0.0075 inch) corner radius and 55-degree included angle suitable for detailed groove geometry.

Key Features

• KC730 grade solid carbide substrate with PVD TiN coating for extended tool life
• 2.39 mm cutting width with a maximum depth of cut of 2.79 mm
• Positive 10-degree rake angle reduces cutting forces and supports chip control
• K-style chip breaker for reliable chip evacuation in grooving applications
• 0.19 mm corner radius suits detailed groove profiles requiring tight tolerances
• Right-hand insert orientation for standard external grooving setups

Compatibility

Designed for use with Top Notch series toolholders that accept NG-style inserts, size 2094. Compatible with toolholder designation NG2094R/LK per manufacturer reference.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine before seating or replacing any insert. Ensure the toolholder pocket is clean and free of chips or debris before inserting. Verify insert orientation matches the programmed tool path direction before resuming operation.
