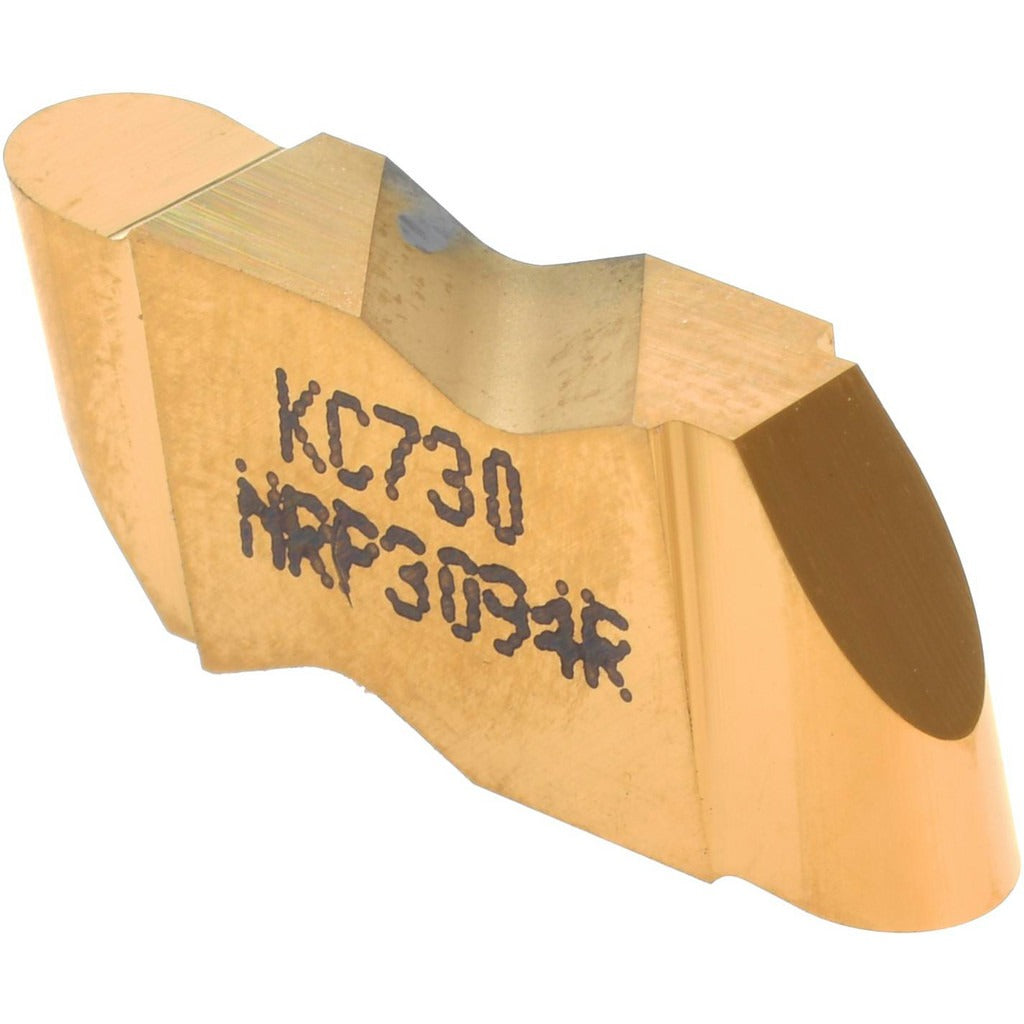

Kennametal 1114267 NRP3094 KC730 Grooving Insert Carbide

Product Description

The KENNAMETAL 1114267 is a solid carbide grooving insert in the Top Notch series, designed for external grooving and turning operations on CNC lathes and turning centers. Manufactured to grade KC730 with a PVD-applied TiN coating, this insert delivers consistent wear resistance in a range of materials including cast iron, steel, and non-ferrous alloys corresponding to material grades C2, C3, and C4. The right-hand configuration features a 4.78 mm cutting width, a maximum depth of cut of 3.81 mm, and a full corner radius of 2.39 mm with a positive 5-degree rake angle. Machinists and toolroom technicians install this insert in compatible Top Notch toolholders for precision groove profiling.

This insert is suited for production turning environments where repeatable groove geometry and tight tolerances are required. The NRP-style insert with insert size designation 3094 fits Top Notch series toolholders configured for right-hand operation. Typical applications include external groove profiling, parting-adjacent grooving, and contour turning in both light and moderate cutting conditions on manual and CNC turning equipment. It is sold individually per package with a minimum order quantity of 5 units.

Key Features

• Solid carbide construction with PVD TiN coating for extended tool life and thermal stability
• 4.78 mm cutting width with a maximum depth of cut of 3.81 mm
• Full corner radius of 2.39 mm for smooth groove base geometry
• Positive 5-degree rake angle reduces cutting forces on the workpiece
• Right-hand insert orientation in the Top Notch series toolholder system
• Compatible with material grades C2, C3, and C4 workpiece materials

Compatibility

Designed for use in Top Notch series right-hand toolholders accepting NRP-style inserts with insert size designation 3094. MSC/Manufacturer reference number NRP3094R. No additional specific compatible model numbers were provided in the product data.

Installation Notes

Installation and replacement should be performed by a qualified machinist or toolroom technician with the machine spindle fully stopped and the machine locked out per applicable safety procedures. Seat the insert fully in the toolholder pocket and torque the clamping screw to the toolholder manufacturer's specification using the correct torque wrench. Inspect the insert seat and clamping surfaces for chips or debris before seating a new insert. Do not exceed the rated maximum depth of cut for this insert grade and geometry.
