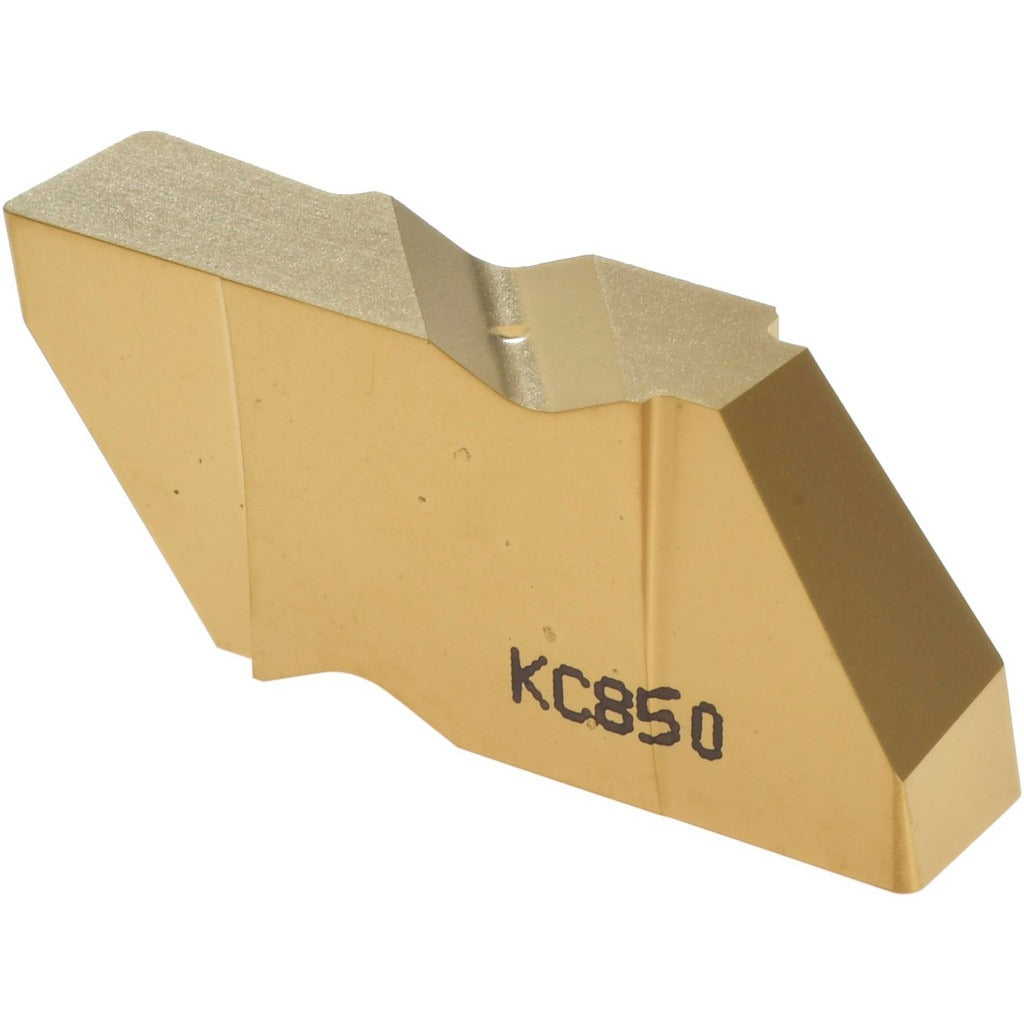

Kennametal 1113907 Grooving Insert KC850 Carbide Top Notch

Product Description

The KENNAMETAL 1113907 is a solid carbide grooving insert in the Top Notch series, designed for external grooving and parting operations on CNC lathes and turning centers. It carries a CVD-applied multilayer coating of TiC, TiCN, and TiN, which provides wear resistance and extended tool life across a range of workpiece materials. The insert features a 0.250-inch (6.35 mm) cutting width and a maximum depth of cut of 0.250 inches (6.35 mm), making it well suited for moderate-depth groove profiles. The KC850 grade targets steel and cast iron applications where thermal and abrasion resistance are priorities. A licensed machinist or CNC operator handles installation and indexing.

This insert fits right-hand Top Notch toolholders and is appropriate for use on production turning equipment in both job shop and high-volume manufacturing environments. It is sized for insert seat size 4 and carries a neutral rake geometry with a 3-degree lead angle and a 0.0225-inch (0.57 mm) corner radius. The included angle is 55 degrees, and the insert height is 0.453 inches. The C5 and C6 material grade classifications make it applicable to continuous and interrupted cutting in steel and cast iron at moderate to high cutting speeds.

Key Features

• CVD multilayer coating: TiC, TiCN, and TiN for wear and heat resistance
• Solid carbide KC850 grade rated for C5 and C6 material groups
• 0.250-inch cutting width with maximum depth of cut range of 0.200 to 0.300 inches
• Neutral rake, 3-degree lead angle, 0.0225-inch corner radius for controlled chip flow
• Top Notch series insert seat size 4 for secure positive-lock seating in compatible toolholders
• Right-hand orientation; not a multi-use reversible insert

Compatibility

Designed for use with Top Notch series right-hand grooving toolholders accepting insert seat size 4, per manufacturer designation NG4250R/L.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Power down and lock out the machine spindle before seating or indexing the insert. Use the correct Top Notch clamp and torque the insert screw to the toolholder manufacturer specification found in the toolholder documentation. Inspect the insert seat for chips or debris before seating to ensure proper contact and prevent insert rocking during cut.
