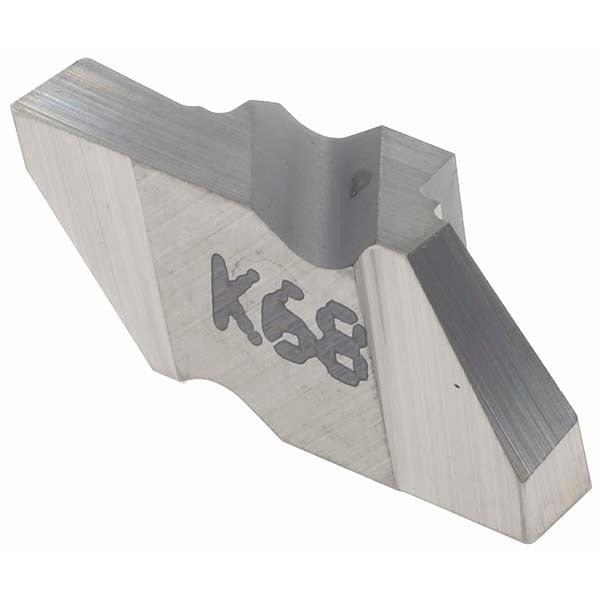

Kennametal 1113567 NG2094 K68 Grooving Insert Carbide

Product Description

The KENNAMETAL 1113567 is a solid carbide grooving insert in the Top Notch series, designed for precision external grooving and parting operations on CNC lathes and turning centers. It carries the K68 manufacturer grade, an uncoated bright finish, and a neutral rake geometry. The cutting width is 2.39 mm (0.0941 inches) with a maximum depth of cut of 2.79 mm (0.1098 inches). The corner radius measures 0.19 mm (0.0075 inches), and the insert features a 55-degree included angle with a 3-degree lead angle. This insert is sold individually and must be ordered in multiples of 5.

This insert is suited for grooving applications on lathes equipped with Top Notch compatible toolholders. It is appropriate for both production and job-shop environments where consistent groove geometry and tight tolerances are required. The right-hand orientation determines the feed direction and holder style needed. The C3 material grade makes it a general-purpose carbide choice for a range of workpiece materials. Machinists and CNC operators working in metalworking, tool-and-die, and precision machining environments are the primary users of this insert style.

Key Features

• Solid carbide construction with K68 grade and uncoated bright finish for consistent performance
• 2.39 mm cutting width with a maximum depth of cut of 2.79 mm
• Neutral rake geometry with a 0.19 mm corner radius for controlled chip formation
• Right-hand insert orientation for compatibility with standard Top Notch right-hand holders
• 55-degree included angle and 3-degree lead angle for precise groove entry
• Top Notch series design for secure insert seating and repeatable indexing

Compatibility

Designed for use with KENNAMETAL Top Notch series toolholders that accept the NG2094 insert style in right-hand orientation. Refer to the MSC/Manufacturer Number NG2094R/L for cross-reference when sourcing compatible holders or equivalent inserts.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and all energy sources are locked out before handling inserts or adjusting toolholders. Seat the insert fully against the pocket surfaces and torque the clamping screw according to the toolholder manufacturer's specifications. Inspect the insert seat and clamping mechanism for wear or debris before indexing to a fresh cutting edge.
