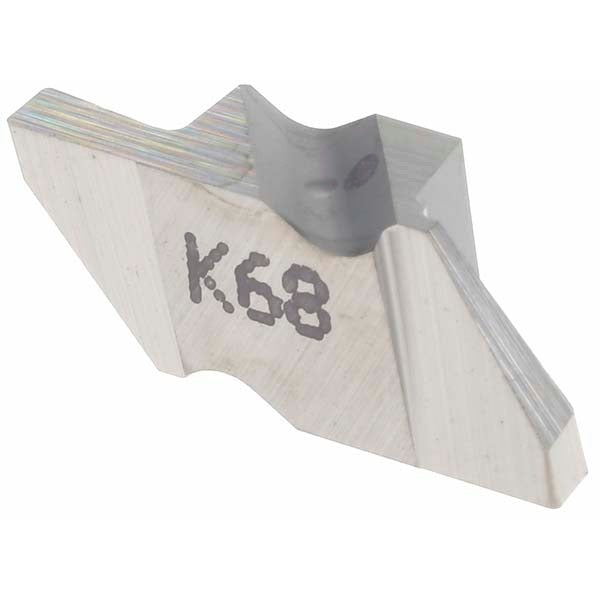

Kennametal 1113566 NG2062 K68 Grooving Insert Carbide

Product Description

The KENNAMETAL 1113566 is a solid carbide grooving insert in the Top Notch series, designed for precision grooving operations on CNC lathes and turning centers. Built to the NG2062 style with a K68 manufacturer grade, this uncoated bright-finish insert delivers a 1.58 mm cutting width and a maximum depth of cut of 2.79 mm. The neutral rake geometry and 0.19 mm corner radius make it well suited for consistent, repeatable groove profiles in metalworking applications. Machinists and tool and die professionals working with harder, abrasive materials will find the C3 material grade carbide substrate appropriate for the task.

This insert is intended for use in external grooving applications on manual or CNC turning equipment. It is configured for right-hand cutting orientation and carries a 3-degree lead angle with a 55-degree included angle. The Top Notch series is a recognized tooling platform commonly found in production and job shop environments handling ferrous and non-ferrous workpieces. The NG2062 insert size fits compatible Top Notch-style toolholders designed for that seat geometry. Package quantity is 1 insert per package, with a minimum order quantity of 5 units.

Key Features

• Solid carbide K68 grade substrate with bright uncoated finish for use in abrasive cutting conditions
• 1.58 mm cutting width with a maximum depth of cut of 2.79 mm
• 0.19 mm corner radius and neutral rake geometry for controlled groove profiles
• Right-hand cutting orientation with a 3-degree lead angle
• 55-degree included angle supports stable insert seating
• Part of the Top Notch series tooling platform for broad toolholder compatibility

Compatibility

Designed for use with Top Notch series toolholders configured for the NG2062 insert seat geometry. MSC and manufacturer cross-reference number is NG2062R/L.

Installation Notes

This insert is installed and replaced by a qualified machinist or toolroom technician. Power down and lock out the machine before changing inserts. Ensure the toolholder seat is clean and free of chips or debris before seating the insert, as contamination can affect seating accuracy and cutting geometry. Follow the toolholder manufacturer's clamping torque guidance for the Top Notch seat style.
