Kennametal 1097242 Threading Toolholder 1x1 Inch Lh

Product Description

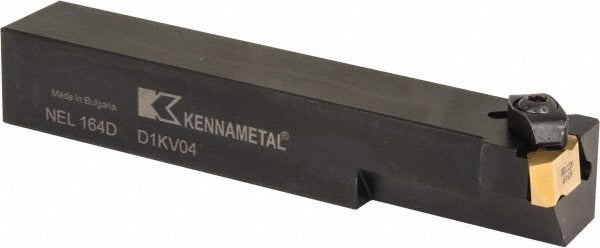

The KENNAMETAL 1097242 is a Top Notch series indexable threading toolholder designed for both internal and external threading and grooving operations. Built with a left-hand orientation, it accepts N.4R inserts secured by a clamp-style holding method. The shank measures 1 inch wide by 1 inch tall, and the toolholder runs 6 inches in overall length with a head length of 0.75 inches. Rated for a maximum depth of cut of 0.294 inches, it suits precision threading work in production and job-shop environments. Licensed machinists and CNC tool-setup technicians are the primary users of this toolholder.

The 1097242 is suited for lathe and turning-center applications where both threading and grooving passes are performed in a single setup. Its multi-use capability allows operators to handle external thread profiles and internal thread profiles without changing the toolholder body. The Toolholder Style NE geometry and the back-of-bar to cutting-edge distance of 1.375 inches provide the clearance needed for typical threading depths encountered in standard production turning. This toolholder fits horizontal and vertical turning applications wherever a 1-inch square shank is accommodated.

Key Features

• Top Notch series toolholder rated for both threading and grooving applications
• Left-hand orientation for dedicated left-hand turning setups
• Accepts N.4R indexable inserts with clamp-style retention
• 1 x 1 inch square shank for broad machine compatibility
• Maximum depth of cut of 0.294 inches
• Multi-use design handles internal and external thread profiles

Compatibility

Designed as an OEM-style replacement or direct-fit toolholder for turning centers and lathes accommodating a 1 x 1 inch square shank and N.4R Top Notch series indexable inserts.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the machine spindle before seating or removing the toolholder from the turret or tool post. Verify insert seating and clamp torque per the machine manufacturer guidelines before resuming cuts. Do not exceed the rated maximum depth of cut when programming threading passes.
