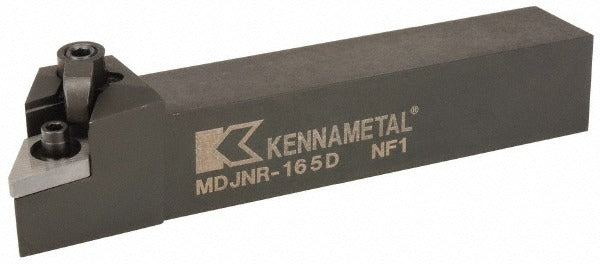

Kennametal 1096246 Indexable Turning Toolholder MDJNR165D

Product Description

The KENNAMETAL 1096246 is an indexable turning toolholder configured to the MDJNR165D style, designed for use on CNC and manual lathes in metal-cutting operations. It uses a clamp screw insert-holding method with a negative rake angle, securing DN-style inserts with a 5/8-inch inscribed circle. The 1-inch by 1-inch square shank provides rigid clamping in standard tool blocks and turrets. Overall length is 6 inches, with a head length of 1.47 inches. Manufactured from steel, this holder is part of Kennametal's Kenloc series, which is engineered for consistent insert seating and repeatable tool positioning in turning applications. Installation is handled by machinists and CNC operators in production and job-shop environments.

This toolholder is suited for external turning operations on lathes in both production and job-shop settings. The right-hand configuration is standard for conventional lathe setups where the cutting tool approaches from the right side of the workpiece. It accepts DN-series inserts with a complete insert compatibility designation of DN.. 543. The negative rake geometry is common for interrupted cuts and harder workpiece materials where edge strength is a priority. Coolant-through capability is not included in this holder. It is a single-application tool, not a multi-use or modular design.

Key Features

• MDJN toolholder style with right-hand orientation for standard external turning setups
• Clamp screw insert retention for secure, repeatable insert positioning
• Accepts DN-series inserts with a 5/8-inch (0.625 inch) inscribed circle
• 1 inch by 1 inch square shank fits standard lathe tool blocks and turrets
• Negative rake geometry suited for interrupted cuts and harder materials
• Part of the Kenloc series for consistent insert seating and tool stability

Compatibility

Compatible with DN-style inserts meeting the DN.. 543 designation. Designed as an OEM-style Kenloc series toolholder for lathes accepting a 1-inch by 1-inch square shank. No additional specific machine model compatibility was provided in the product data.

Installation Notes

Installation is performed by machinists or CNC operators. Power down and lock out the lathe spindle before changing the toolholder or insert. Ensure the shank is fully seated and clamped to the specified tool block torque per the machine manufacturer's guidelines. Verify insert orientation and seating before resuming cutting operations.
