Kennametal 1096199 Mtgn Turning Toolholder 5/8 Inch Shank

Product Description

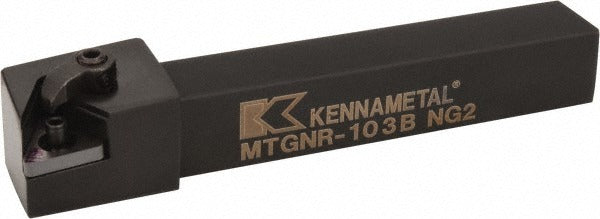

The KENNAMETAL 1096199 is a right-hand MTGN-style indexable turning toolholder from the Kenloc series, designed for negative rake turning operations on CNC and manual lathes. Built from steel, the toolholder features a 5/8 x 5/8 inch square shank and accepts TN..33. series triangular inserts secured by a clamp and screw insert-holding method. With a negative 5-degree rake angle and a 4.5 inch overall length, this toolholder is suited for general-purpose external turning where insert stability and repeatable edge positioning are critical. No coolant-through capability is included.

This toolholder is used in metalworking and machining operations requiring a right-hand setup with negative rake geometry. Typical applications include external turning of ferrous and non-ferrous materials on production lathes and turning centers. The MTGN style positions the insert for lead angle cutting with a stable clamping system, making it appropriate for medium to heavy material removal passes. It is installed by machinists and tooling technicians in job shops, manufacturing facilities, and maintenance machine shops.

Key Features

• MTGN toolholder style with right-hand orientation for external turning operations
• Negative 5-degree rake angle supports stable cutting with indexable triangular inserts
• Accepts TN..33. series inserts (complete compatibility: TN.. 322) using clamp and screw retention
• Steel construction for rigidity and durability in production turning environments
• 5/8 x 5/8 inch square shank fits standard toolpost and turret holders
• Part of the Kenloc series for consistent Kennametal insert system integration

Compatibility

Designed for use with TN..33. series triangular indexable inserts; complete insert compatibility reference is TN.. 322. This toolholder is part of the Kenloc series and is compatible with toolposts and turrets accepting a 5/8 x 5/8 inch shank.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the machine before changing or seating the toolholder in the turret or toolpost. Verify insert seating and clamp screw torque against the machine tool manufacturer guidelines before initiating any cutting operation. Inspect the insert pocket and clamping components for wear or debris before each insert change.
