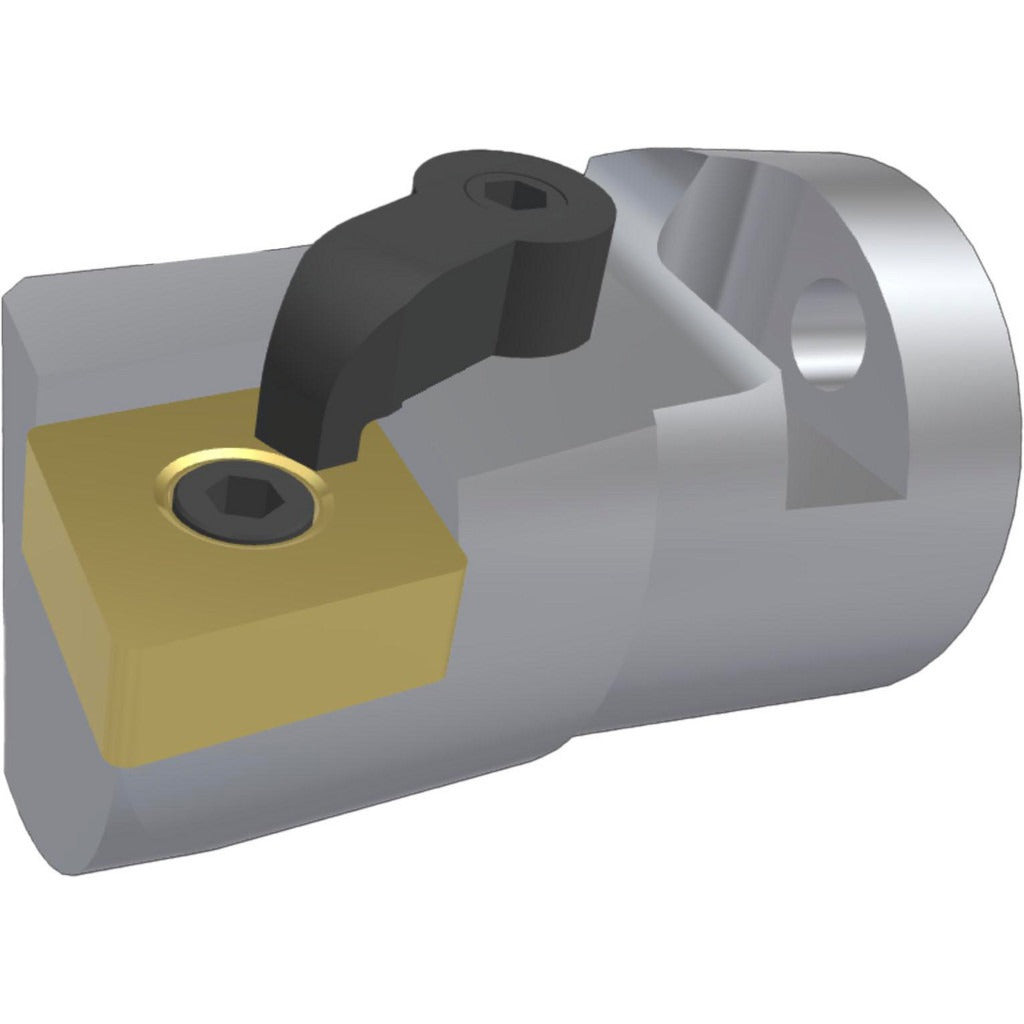

Kennametal 1095308 Modular Boring Head H16 Through Coolant

Product Description

The KENNAMETAL 1095308 is a right-hand modular boring head from the Kenloc series, designed for precision internal boring operations on CNC machining centers and boring mills. The head accepts CN-style inserts held by a clamp and screw method, providing reliable insert retention during interrupted and continuous cuts. With a center-to-cutting-edge distance of 0.64 inches and a head diameter of 1 inch excluding the insert, this head is engineered for tight bore tolerances. Through-coolant capability delivers cutting fluid directly to the insert tip, extending tool life and improving chip evacuation in deep bore applications. Licensed machinists and tooling specialists install and configure this head in production and job-shop environments.

The 1095308 is suited for residential and industrial machining applications where bore diameter control is critical. It targets a minimum bore diameter of 30.48 mm and projects 1.625 inches from the spindle face. The H16 system size mates with compatible Kenloc modular tooling interfaces. This head is commonly configured on horizontal and vertical machining centers in metal-cutting operations across aerospace, automotive, and general manufacturing.

Key Features

• Right-hand cutting direction for standard CNC boring operations
• CN.. 432 insert compatibility with clamp and screw holding for positive insert retention
• Through-coolant design directs fluid to the cutting zone for improved chip control and tool life
• H16 system size integrates with Kenloc modular tooling adapters
• 1 inch head diameter excluding insert with 1.625 inch head length projection
• Compact and lightweight at 0.2271 pounds for reduced spindle load

Compatibility

Designed for use with the Kenloc modular tooling system at H16 system size. Compatible inserts are CN.. 432 style. Specific machine and adapter compatibility should be confirmed against current Kenloc interface specifications before installation.

Installation Notes

Installation of modular boring heads should be performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before mounting or removing the boring head. Verify that the mating modular interface and coolant passages are clean and free of chips or debris before assembly. Confirm insert seating and clamping torque according to the toolholder manufacturer guidelines before initiating a cut.
