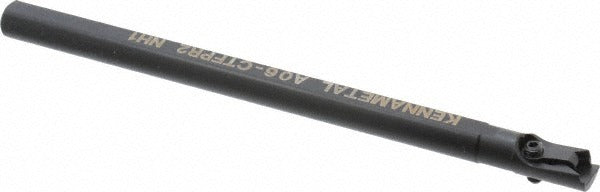

Kennametal 1094872 Indexable Boring Bar 3/8 in Shank Steel

Product Description

The KENNAMETAL 1094872 is an indexable boring bar in the Kendex series, designed for internal turning and boring operations on CNC lathes and manual turning centers. Built from steel with a 3/8 inch shank diameter and a 6 inch overall length, this right-hand holder accepts TP-style inserts secured by a clamp-style holding method. The positive rake geometry, with a 5-degree rake angle, reduces cutting forces and supports cleaner finishes in a range of bore diameters. It is installed by machinists and toolroom technicians performing precision internal machining work.

This boring bar is suited for small-bore internal turning applications, with a minimum bore diameter of 0.480 inches (12.19 mm). The coolant-through design, with a 0.125 inch coolant hole, supports chip evacuation and tool life in production environments. The A-CTFP toolholder style is a common configuration for tight-bore, right-hand turning operations on both manual and CNC equipment. Each unit ships individually and is intended for single-application use without multi-tool conversion.

Key Features

• Right-hand cut orientation for standard internal turning setups
• Clamp-style insert holding for quick, repeatable insert indexing
• Positive rake angle (5 degrees) reduces cutting forces in small-bore operations
• Coolant-through design with 0.125 inch coolant hole supports chip control and heat management
• Accepts TP-style inserts with 1/4 inch inscribed circle and 3/32 inch thickness
• Steel construction provides rigidity in standard boring bar applications

Compatibility

Designed for use with TP-style indexable inserts (1/4 inch inscribed circle, 3/32 inch thickness). Fits toolholding systems that accept a 3/8 inch round shank boring bar. Part of the Kendex series by KENNAMETAL.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. The machine spindle must be fully stopped and the machine powered down before changing or indexing inserts. Secure the shank in a boring bar holder or turret block to the appropriate clamping torque per the machine tool manufacturer's specifications. Verify coolant line connection if using the through-coolant feature before resuming operation.
