Kennametal 1094550 Srgc Indexable Turning Toolholder

Product Description

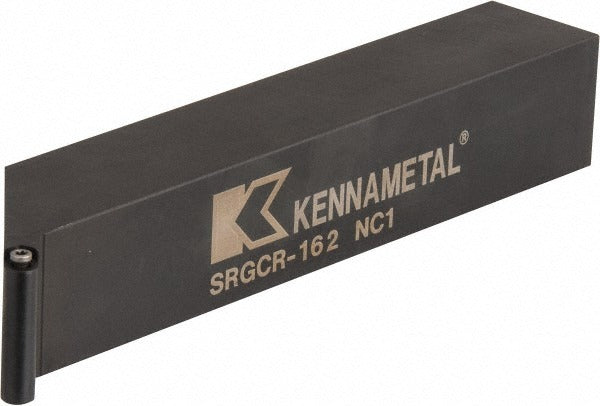

The KENNAMETAL 1094550 is a right-hand SRGC-style indexable turning toolholder designed for external turning operations on CNC lathes and manual turning centers. Built on a 1 inch by 1 inch steel shank with an overall length of 6 inches, it accepts RC..21.5. series inserts secured by a screw-on clamping method. The neutral rake geometry at 0 degrees suits a broad range of workpiece materials and cutting conditions. Designed for use by machinists and toolroom technicians running production or job-shop turning work, the 1094550 provides consistent insert indexing and rigid shank support in standard square-shank tool blocks and holders.

This toolholder is suited for external longitudinal and facing operations on lathes equipped with square-shank tool posts or turret stations. The 1-inch square shank fits standard SRGC-style tool positions on both manual and CNC turning equipment. The screw-on insert retention method allows fast, repeatable insert changes without disturbing the tool offset. The back-of-bar to cutting edge dimension of 1.25 inches positions the insert at a consistent centerline height. No coolant-through capability is present, so external coolant delivery applies.

Key Features

• Right-hand SRGC toolholder style for external turning applications
• 1 inch x 1 inch square steel shank, 6 inches overall length
• Neutral rake at 0 degrees for broad material compatibility
• Screw-on insert clamping for fast, repeatable indexing
• Accepts RC..21.5. series inserts with 1/4 inch inscribed circle
• Back-of-bar to cutting edge dimension of 1.25 inches

Compatibility

Designed to accept RC..21.5. series inserts with a 1/4 inch inscribed circle. Compatible insert designation per input: RC.. 215. Fits standard square-shank tool posts and turret stations sized for 1 inch x 1 inch shanks.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the lathe spindle before changing inserts or seating the toolholder in the turret or tool post. Ensure the shank is fully seated and clamping bolts are torqued per the machine tool manufacturer specifications. Verify cutting edge height at centerline before initiating a cut.
