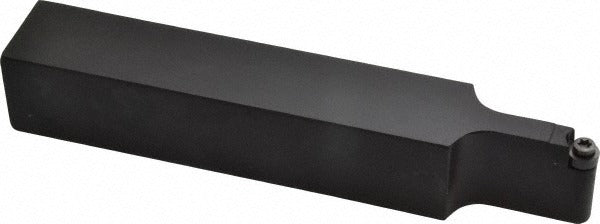

Kennametal 1094547 Indexable Turning Toolholder SROCN163

Product Description

The KENNAMETAL 1094547 is an indexable turning toolholder in the SROCN163 style, designed for use on CNC lathes and manual turning centers in metal-cutting operations. It uses a screw clamping method to secure round (RC-style) inserts with a 3/8-inch inscribed circle diameter. The shank measures 1 inch wide by 1 inch tall with an overall length of 6 inches. The holder features a neutral hand orientation and a neutral rake angle of 0 degrees, making it suitable for straight turning, facing, and profiling passes. It is installed by machinists and CNC setup technicians in production and job-shop environments.

This toolholder fits standard turning center turrets and toolposts that accept a 1 x 1 inch square shank. It is configured for RC-style inserts with a 3/8-inch inscribed circle, compatible with the RC.. 325 insert family per Kennametal specification. The screw-on clamping system allows fast insert indexing without disturbing the tool offset, which is common in high-volume turning applications. This holder does not include coolant-through capability, so external coolant delivery must be used if required by the application.

Key Features

• SROCN163 toolholder style with neutral hand orientation for straight and profiling cuts
• Screw clamping method for secure, repeatable insert seating and fast indexing
• Accepts RC-style inserts with 3/8-inch (0.375 inch) inscribed circle diameter
• 1 x 1 inch square shank with 6-inch overall length for rigid setup
• Neutral rake angle (0 degrees) for versatile material and cut-type compatibility
• Steel toolholder body construction for durability in production turning environments

Compatibility

Designed for use with RC.. 325 series indexable inserts per Kennametal specification. Fits turning center turrets and toolposts accepting a 1 x 1 inch square shank. Specific machine compatibility depends on turret bore and block style at the installation site.

Installation Notes

Installation is performed by a machinist or CNC setup technician. The machine spindle must be stopped and the turret must be in a safe index position before mounting or removing the toolholder. Confirm insert seating and screw torque per the insert manufacturer guidelines before resuming cutting. Verify tool offset and clearance angles prior to making the first pass after any toolholder change.
