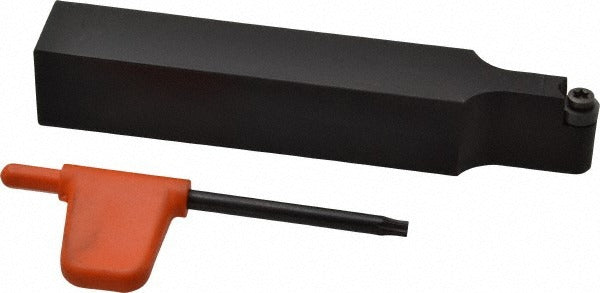

Kennametal 1094546 Sroc Indexable Turning Toolholder

Product Description

The KENNAMETAL 1094546 is a neutral-hand SROC-style indexable turning toolholder designed for precision external turning operations on CNC and manual lathes. Built from steel construction, it accepts RC..32.5. series inserts secured via a screw-on clamping method, providing consistent insert seating and reliable cutting-edge positioning. The toolholder features a 0 degree neutral rake angle and a square shank measuring 0.75 inches wide by 0.75 inches tall with an overall length of 4.5 inches. It is installed by machinists and tool-and-die professionals in production turning and general-purpose machining environments.

This toolholder is suited for use in both manual engine lathe and CNC turning center applications where a neutral-hand orientation is required. The screw-on insert retention method makes it appropriate for interrupted cuts and applications demanding secure insert lock. With a back-of-bar to cutting edge distance of 0.562 inches and a 0.375-inch insert inscribed circle, it fits standard toolpost and turret positions common to 0.75-inch shank toolholding systems in light to medium stock-removal operations.

Key Features

• SROC-style neutral-hand toolholder with 0 degree rake angle for versatile turning setups
• Screw-on insert clamping method for positive insert retention during interrupted or continuous cuts
• Accepts RC..32.5. series inserts with a 0.375-inch inscribed circle
• Square steel shank at 0.75 inches x 0.75 inches fits standard lathe toolpost and turret positions
• Back of bar to cutting edge distance of 0.562 inches for accurate tool-center alignment
• No coolant-through passages — suited for external flood-coolant or dry turning applications

Compatibility

Designed to accept RC..32.5. series indexable inserts with a 0.375-inch inscribed circle. Fits standard 0.75-inch shank toolpost and turret positions on compatible CNC turning centers and manual lathes.

Installation Notes

Toolholder installation and insert changes should be performed by qualified machinists with the machine powered off and at a full stop. Secure the shank firmly in the toolpost or turret to the manufacturer-specified clamping requirements for the machine in use. Use the appropriate Torx or hex key to seat the clamping screw to the insert manufacturer guidelines for the RC..32.5. insert series. Verify tool centerline height before resuming cutting operations.
