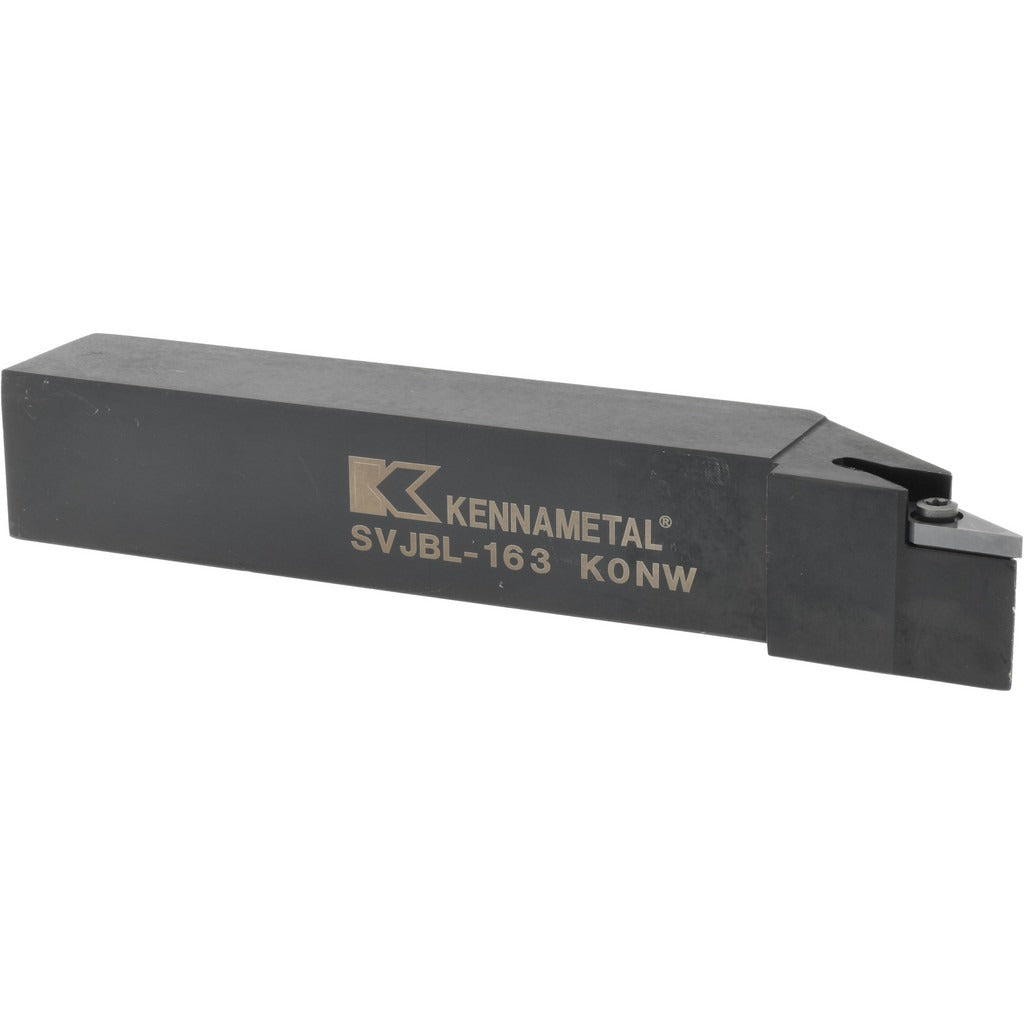

Kennametal 1094542 Lh Svjb Indexable Turning Toolholder

Product Description

The KENNAMETAL 1094542 is a left-hand SVJB-style indexable turning toolholder designed for precision external turning operations on CNC lathes and turning centers. It features a neutral rake angle of 0 degrees, which provides balanced cutting geometry suited to a wide range of workpiece materials and turning conditions. The toolholder accepts VB..33. series inserts, secured via a screw-on clamping method for positive, repeatable insert location. The 1-inch by 1-inch square shank provides rigid mounting in standard lathe tool blocks. Machinist and CNC turning specialists install this holder as part of a production or toolroom turning setup.

This toolholder is intended for use on CNC lathes, engine lathes, and turning centers where left-hand tooling is required. The SVJB toolholder style is suited for straight, external turning operations with a 3-degree lead angle. The 6-inch overall length and 1.38-inch head length make it appropriate for standard toolpost and gang-style turret setups. It is a single-use, non-multi-tool holder designed exclusively for turning applications. Compatible insert geometry is the VB..33. series, specifically the VB.. 332 complete insert designation.

Key Features

• Left-hand orientation for dedicated left-hand turning operations
• Neutral rake, 0-degree rake angle for versatile material compatibility
• Screw-on insert clamping for secure, repeatable insert indexing
• 1 inch x 1 inch square shank fits standard lathe toolpost blocks
• 6-inch overall length with 1.38-inch head length for rigid tool projection
• Steel toolholder construction for durability in production turning environments

Compatibility

Designed to accept VB..33. series inserts (complete insert compatibility: VB.. 332) with a 3/8-inch inscribed circle. Verify insert designation against machine and operation requirements before ordering.

Installation Notes

Installation should be performed by a qualified machinist or CNC technician. Power down and lock out the machine spindle before changing toolholders or indexing inserts. Ensure the shank seats fully and squarely in the toolpost or turret pocket and that all clamping bolts are torqued per the machine tool manufacturer's specifications. Confirm insert seating and screw torque before resuming cutting operations.
