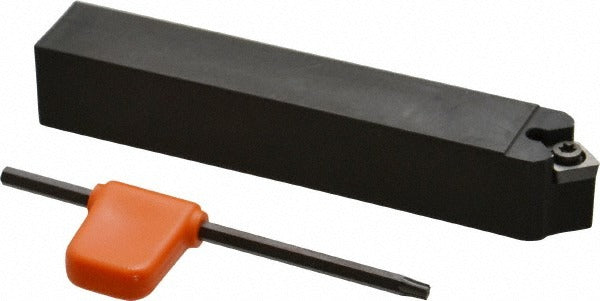

Kennametal 1094502 Turning Toolholder SCMCN123 3/4 Shank

Product Description

The KENNAMETAL 1094502 is an indexable turning toolholder configured in the SCMCN123 style with a screw-on insert holding method and neutral hand orientation. Designed for use on CNC and manual lathes, this toolholder accepts CC-style inserts with a 3/8-inch inscribed circle diameter. The shank measures 3/4 inches wide by 3/4 inches tall, with an overall length of 4.5 inches. The steel construction provides the rigidity needed for consistent, repeatable turning operations. It is installed and serviced by machinists and toolroom technicians in production and job-shop environments.

This toolholder is suited for external turning applications on both manual engine lathes and CNC turning centers. The SCMC toolholder style is commonly used in general-purpose turning where a neutral rake angle and screw-clamped insert system are preferred for secure insert retention and straightforward indexing. The 0-degree rake angle supports a broad range of workpiece materials and turning conditions without requiring a specialized insert seat geometry.

Key Features

• SCMCN123 toolholder style with neutral hand orientation and 0-degree rake angle
• Screw-on insert holding method for secure clamping and fast indexing
• Compatible with CC-style inserts, 3/8-inch (0.375-inch) inscribed circle
• 3/4 x 3/4 inch shank cross-section, 4.5 inches overall length
• Steel construction for rigidity and durability in turning applications
• No coolant-through feature; standard external coolant delivery applies

Compatibility

Accepts CC-style inserts with a 3/8-inch inscribed circle (complete insert compatibility designation CC.. 3252). Designed as a direct-fit toolholder for lathes and turning centers accepting a 3/4 x 3/4 inch shank.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the turning center or lathe spindle before mounting or removing the toolholder. Seat the shank fully in the tool post or turret and secure per the machine manufacturer's torque requirements for the clamping hardware. Index or replace the CC-style insert using the appropriate Torx or hex key as specified by the insert screw fastener.
