Kennametal 1094484 Turning Toolholder Left Hand Sclc

Product Description

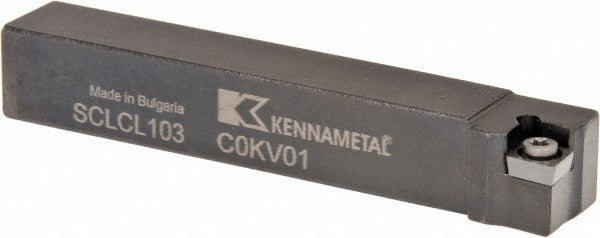

The KENNAMETAL 1094484 is a left-hand SCLC-style indexable turning toolholder designed for precision external turning operations on CNC and manual lathes. It features a neutral rake geometry with a 0-degree rake angle and a 5-degree lead angle, making it well suited for general-purpose turning where consistent chip control and insert seating are critical. The screw-on insert holding method locks the insert securely during heavy interrupted or continuous cuts. The shank measures 0.625 inches wide by 0.630 inches tall with an overall length of 4 inches. This toolholder is installed by machinists and CNC operators in production and job-shop environments.

This toolholder is used in external turning applications on standard square-shank toolpost setups found on CNC turning centers and engine lathes in both production and maintenance machining environments. The left-hand orientation positions the cutting edge for right-to-left feed direction cuts. It accepts CC..32.5. series inserts with a 3/8-inch inscribed circle, which are common in general turning of steel, cast iron, and similar materials. The screw-on clamping method provides positive insert location without an overhead clamp obstructing chip flow.

Key Features

• SCLC toolholder style with left-hand orientation for right-to-left feed direction turning
• Neutral rake, 0-degree rake angle and 5-degree lead angle for versatile general-purpose cutting
• Screw-on insert holding method for positive, repeatable insert location
• Accepts CC..32.5. inserts with 0.375-inch (3/8-inch) inscribed circle
• 0.625 x 0.630 inch square shank fits standard toolpost and turret pockets
• Steel construction for rigidity and durability under continuous cutting loads

Compatibility

Compatible with CC..32.5. series indexable inserts (complete designation CC.. 3252) having a 3/8-inch inscribed circle. Designed as an OEM-style screw-on toolholder for use in standard square-shank turning toolpost and turret applications.
