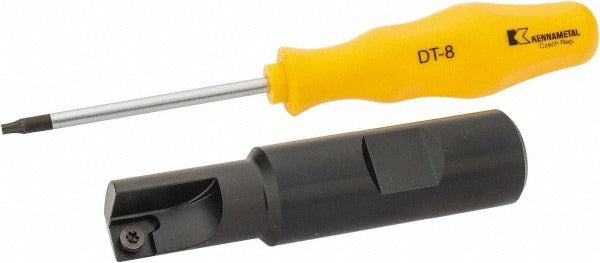

Kennametal 1023582 Square-shoulder End Mill 5/8 in

Product Description

The KENNAMETAL 1023582 is an indexable square-shoulder end mill designed for precision milling operations requiring a true 90-degree shoulder. Built around the KICR cutter style, this tool accepts a single SDEB 2615 insert secured by screw clamp. It features a 0.625 inch cutting diameter, a maximum depth of cut of 0.28 inches (7.11 mm), and a 3/4 inch cylindrical shank. The 3.25 inch overall length and 51.56 mm shank length provide reach and rigidity in a compact single-flute configuration. Rated to 10,750 RPM, this end mill suits high-precision contouring and shoulder milling on CNC machining centers. It weighs approximately 0.24 pounds.

This end mill is suited for light to medium-duty shoulder milling and slotting applications on machining centers in job shop and production environments. The single-insert, single-flute design makes it well-matched to applications where controlled chip load and precise wall finish are priorities. The 0-degree lead angle produces a true square shoulder at the workpiece. No coolant-through capability is present, so external flood or mist coolant strategies are appropriate for heat management during the cut.

Key Features

• KICR cutter style with 0-degree lead angle for true 90-degree square shoulder
• Accepts one SDEB 2615 insert retained by screw clamp for fast indexing
• 0.625 inch cutting diameter with 0.28 inch maximum depth of cut per pass
• 3/4 inch cylindrical shank for direct collet or end mill holder mounting
• Single-flute design for controlled chip load in precision milling
• Maximum spindle speed of 10,750 RPM

Compatibility

This tool is compatible with one SDEB 2615 insert as specified by the manufacturer. Insert style SDEB 2615 is the only insert designated for use with this cutter body.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. The 3/4 inch cylindrical shank should be secured in a properly sized end mill holder or collet chuck torqued per the toolholder manufacturer's specification. Before mounting or indexing the insert, confirm the machine spindle is fully stopped and the control is in E-stop or lockout state. Inspect the insert pocket and seating surfaces for chips or contamination before clamping the SDEB 2615 insert.
