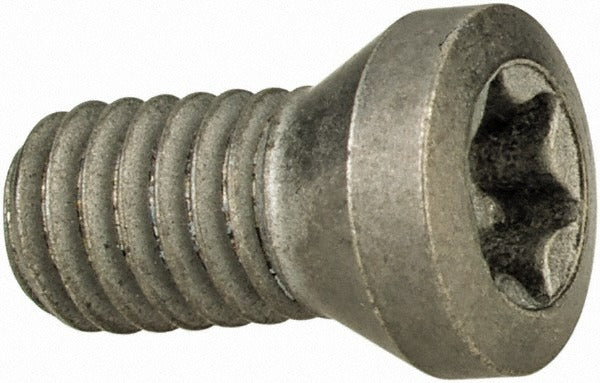

Kennametal 1021341 Cap Screw Indexable T15 Torx

Product Description

The KENNAMETAL 1021341 is a T15 Torx cap screw designed to secure indexable inserts in milling and turning toolholders. This small-format fastener maintains precise insert positioning under the cutting forces generated during metal removal operations. The T15 Torx drive interface resists cam-out and delivers consistent clamp torque, which is critical for repeatable insert seating. Weighing 0.05 pounds, it is a direct replacement-grade component used by machinists and toolroom technicians to maintain indexable tooling assemblies. Minimum order quantity is 10 pieces; each package contains 1 piece.

This cap screw is used in CNC machining centers, turning centers, and manual lathes equipped with indexable toolholders that require a T15 Torx insert-retention screw. It is suited for production environments where inserts are changed frequently and fastener condition is maintained as part of a standard tooling maintenance program. Machinists should replace cap screws whenever wear, deformation, or thread damage is observed to prevent insert movement during cuts.

Key Features

• T15 Torx drive resists cam-out during insert tightening
• Compatible with indexable milling and turning toolholders
• Lightweight at 0.05 pounds for easy handling in toolroom environments
• UNSPSC Code 31161500 for procurement and catalog classification
• Minimum order quantity of 10 supports toolroom stock replenishment

Compatibility

Designed as an OEM-style replacement cap screw for indexable insert toolholders requiring a T15 Torx drive fastener in milling and turning applications.

Installation Notes

Cap screw installation and replacement should be performed by a qualified machinist or toolroom technician. Remove the toolholder from the spindle and ensure the machine is powered down and locked out before servicing insert hardware. Use a calibrated T15 Torx driver or key and apply manufacturer-recommended clamp torque without exceeding the fastener rating. Inspect the screw threads and Torx socket for wear each time inserts are indexed.
