Kennametal 1016726 Sm Shim Indexable Turning Insert 0.5 in

Product Description

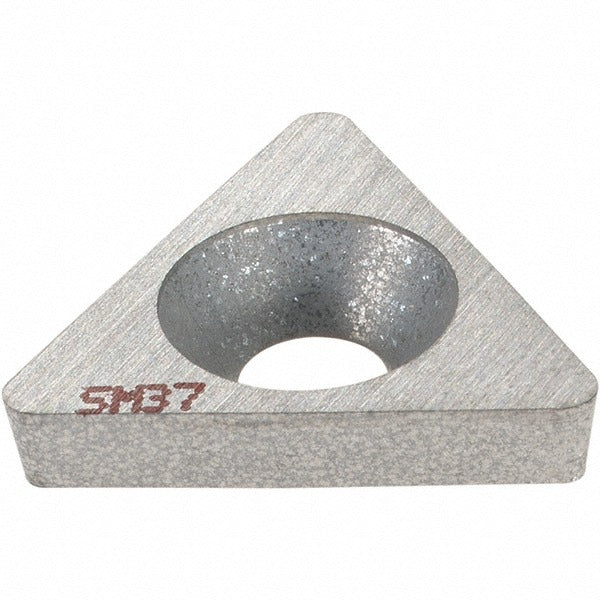

The KENNAMETAL 1016726 is an SM-style shim designed for use with indexable turning toolholders. Shims seat beneath the cutting insert to establish correct cutting geometry and protect the toolholder pocket from wear and damage during metal cutting operations. This shim is compatible with triangular indexable inserts with a 0.5 inch inscribed circle and is configured for positive rake applications. It supports both left-hand and right-hand cutting directions, making it adaptable across a range of turning setups. CNC machinists and tool crib technicians are the primary users. At 0.013 pounds, it is a lightweight precision component that must be seated correctly before insert clamping.

This shim is intended for indexable turning applications in production and job-shop environments. It is used in toolholder assemblies where insert support and pocket protection are required during external turning, facing, and profiling operations. The SM shim style and positive rake configuration make it suited for toolholders designed around triangular insert geometries. No specific compatible toolholder model numbers are provided in the available product data.

Key Features

• SM shim style designed for indexable turning toolholders
• Compatible with triangular inserts at 0.5 inch inscribed circle
• Positive rake configuration for appropriate cutting geometry
• Supports both left-hand and right-hand cutting directions
• Lightweight at 0.013 pounds for easy handling and inventory management
• Sold individually with a minimum order quantity of 10 pieces

Compatibility

Designed as an OEM-style replacement shim for indexable turning toolholders that accept triangular inserts with a 0.5 inch inscribed circle and an SM shim style seat in positive rake configurations.

Installation Notes

Installation is performed by qualified machinists or tool crib personnel familiar with indexable toolholder assembly. Power down and lock out the machine before servicing any toolholder or insert assembly. The shim must be placed flat and fully seated in the toolholder pocket before the insert and clamp are installed. Inspect the shim for cracks or deformation at each insert index interval and replace if any damage is found.
