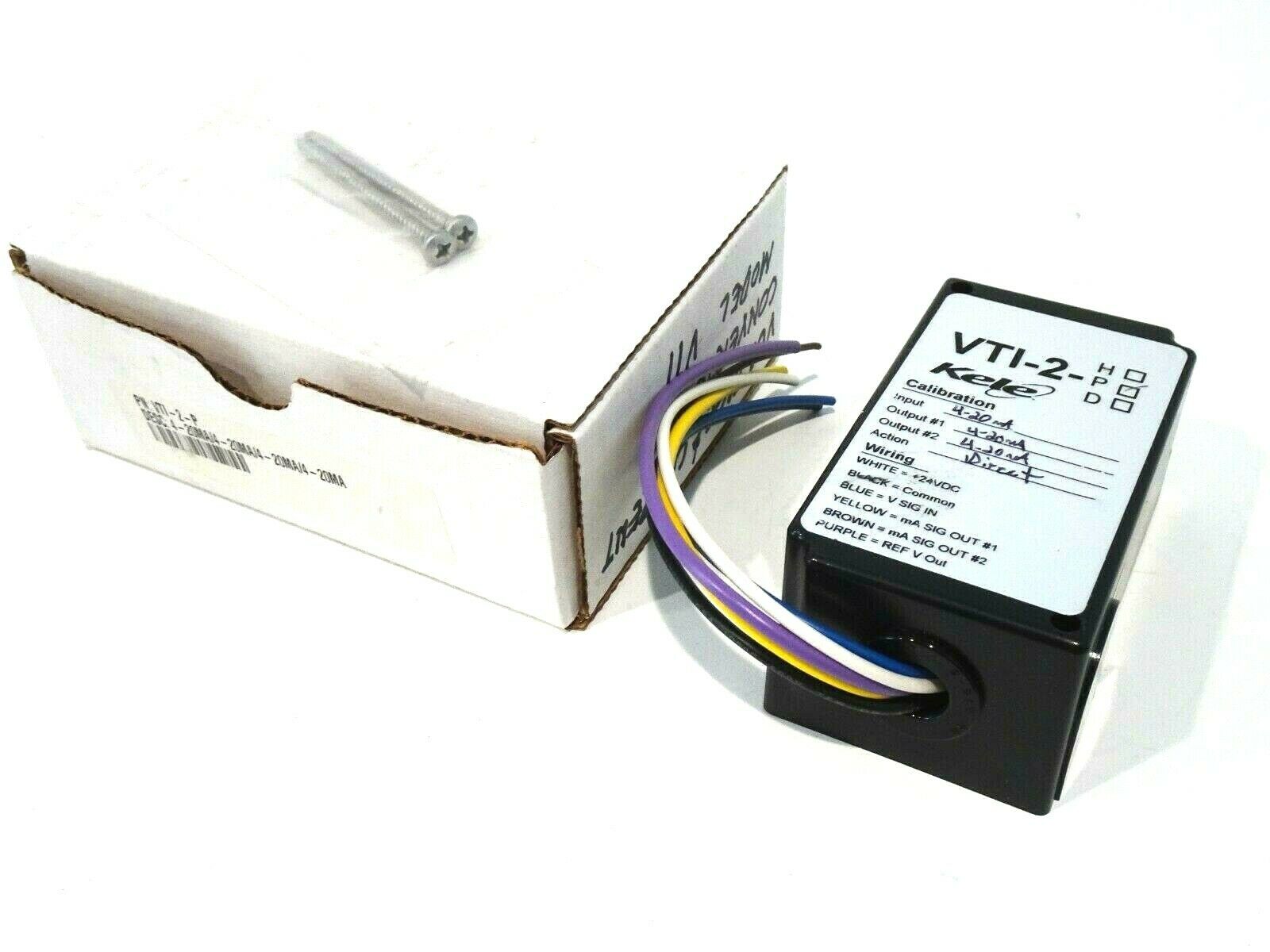

Kele VTI-2-P V/I Transducer 24 VDC (Panel) VTI-2-P

Product Description

The Kele VTI-2-P is a voltage/current transducer that converts voltage, current, or potentiometer inputs into a 4-20 mA non-isolated signal and provides dual, independently configurable outputs. It accepts 1-19 VDC or 1.33-76 mA input ranges, is DC powered with a nominal 24 VDC supply (22-27 VDC half-wave), and can be configured direct or reverse acting. The unit is panel-mount with screw terminal wiring and LED input indication, intended for HVAC and building automation signal conversion and rescaling.

• Converts 1-19 VDC or 1.33-76 mA inputs to 4-20 mA outputs with loss-of-input resulting in 0 mA
• Single input with dual independently configurable 4-20 mA outputs; direct or reverse acting; linearity <1% of span
• 24 VDC nominal supply (22-27 VDC half-wave), panel mount enclosure, screw terminal wiring, LED indication of valid input

Product Highlights

Dual independent 4-20 mA outputs; accepts 1-19 VDC or 1.33-76 mA inputs; nominal 24 VDC supply; panel mount with screw terminals

Product Information

Standard Information

• Brand: KELE
• Manufacturer Part Number: VTI-2-P

Technical Specifications

• Brand: Kele
• Manufacturer Part Number: VTI-2-P
• Type: Universal Analog Converter / V/I Transducer
• Input Signal: Voltage, current, or potentiometer
• Input Range (Voltage): 1-19 VDC (1 V minimum span)
• Input Range (Current): 1.33-76 mA
• Input Loss Threshold: 0.7 VDC
• Input Impedance: 150 kOhm @ 1-19 VDC; 250 Ohm @ 4-40 mA (4 mA min span); 500 Ohm @ 2-38 mA (2 mA min span); 750 Ohm @ 1.3-25 mA (1.33 mA min span)
• Output Signal: 4-20 mA analog (non-isolated)
• Output Current: 4-20 mA
• Output Voltage (Reference): 10 VDC @ 15 mA max (for 1-19 VDC input); 6 VDC @ 10 mA max (for 1-11 VDC input)
• Output Burden: 850 Ohm maximum @ 24 VDC; Rmax = (Vsupply - 7) / 20 mA
• Outputs: Dual, independently configurable
• Supply Voltage (Nominal): 24 VDC
• Supply Voltage (Range/Series): 22-27 VDC, half-wave
• Action: Direct or reverse acting
• Linearity: <1% of span
• Wiring Terminations: Screw terminals
• Mounting Type: Panel
• Operating Temperature: 32 to 158 F (0 to 70 C)
• Operating Humidity: 5% to 95% RH (non-condensing)
• Approvals: RoHS
