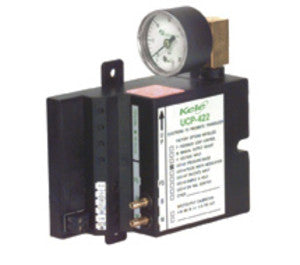

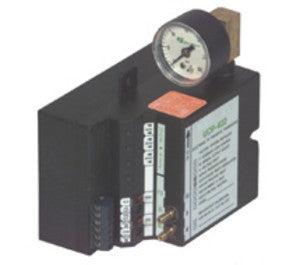

KELE UCP-422-43-47 Electro-Pneumatic Transducer

Product Description

The KELE UCP-422-43-47 is an electro-pneumatic transducer designed for HVAC applications and building automation systems. This device accepts analog input signals and generates a pneumatic output signal. It features manual output adjustment to aid in setup and troubleshooting. The transducer can be powered by either 24 VAC or VDC.

• Accepts analog input and outputs pneumatic signals.
• Manual output adjustment aids in setup.
• Supports PWM and tri-state control options.

Product Highlights

This transducer is suitable for various HVAC control applications due to its versatility and ease of use.

Product Information

Standard Information

• Brand: KELE
• MPN: UCP-422-43-47

Technical Specifications

• Type: Electro-Pneumatic
• Supply Voltage: 24 VAC, 24 VDC
• Output Signal: Pneumatic
• Input Signal: Analog
• Mounting Type: DIN rail
• Operating Humidity: 5 to 95% RH (non-condensing)
• Operating Temperature: 32 to 122 F (0 to 50 C)
• Warranty: 18 months
• Weight: 1.4 lbs (0.64 kg)
• Supply Current: 100 mA maximum (half-wave) at 24 VAC
• Air Capacity: 515 scfm @ 20 psig
• Air Connections: Brass barbs for 1/4 OD tubing
• Wiring Terminations: Screw terminals
