KELE P51-500-20 Pressure Transmitter 0-500 psig Replacement MPN

Product Description

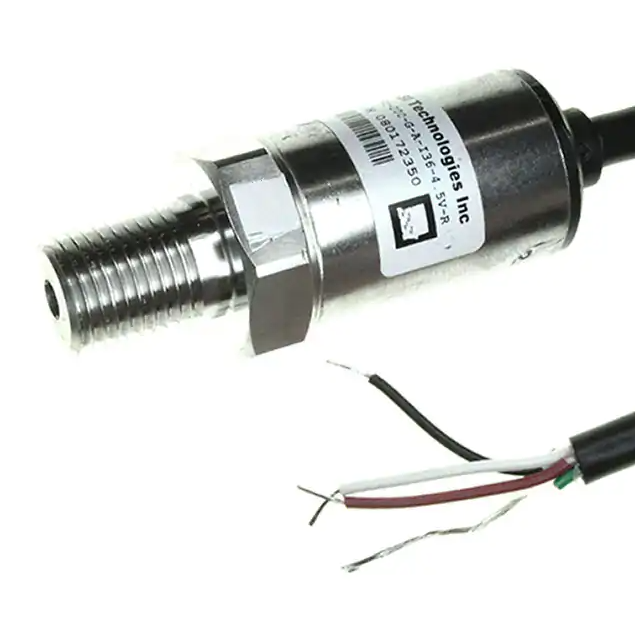

The KELE P51-500-20 is a stainless steel pressure transmitter designed for liquid or gas media in various applications including industrial and commercial systems. This pressure transmitter features stainless steel wetted parts, making it compatible with water, glycol, refrigerants, steam, and ammonia. It has a range of zero to five hundred psi and a four to twenty milliamp output. It also includes a three-foot cable as a standard feature.

• Stainless steel design for durability
• Reverse polarity protection for reliable performance
• Suitable for applications needing pressure measurement

Product Highlights

This pressure transmitter is compact and robust, ideal for diverse environments. It combines accuracy with a strong build for long-lasting use.

Product Information

Standard Information

• Brand: KELE
• MPN: P51-500-20

Technical Specifications

• Measurement: PSIG
• Media Compatibility: Liquid, Gas
• Range: 0-500 psi
• Type: Transmitter
• Accuracy: 0.50%
• Output: 4 - 20 mA
• Supply Voltage: 8 to 30VDC
• Sensor Type: ASIC piezo-resistive and temperature compensated
• Overpressure: Burst up to 3x rated pressure
• Max Operating Pressure: Proof up to 5x rated pressure
• Operating Temperature: -40 to 221°F (-40 to 105°C)
• Operating Humidity: 10 to 90% Non-condensing
• Wetted Parts: Brass, 304SS, and 316SS
• Process Connection: Direct-1/8 inch MNPT, Encl. bulkhead- 1/8 inch FNPT
• Wiring Terminations: 16 AWG pigtail, 2 used (4-20mA), 36 inch (91cm) cable with Packard connector
• Mounting: By process connection or optional enclosure
• Enclosure Rating: Optional plastic enclosure, NEMA 4 (IP66)
• Warranty: 1 year
