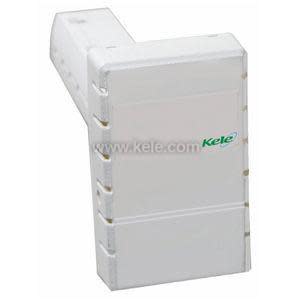

KELE KCOC-D-V-R Carbon Monoxide Sensor with LED Indicator

Product Description

The KELE KCOC-D-V-R is a carbon monoxide sensor suitable for duct installation. It features an LED for visual CO level indication and outputs an analog signal in the range of zero to ten volts direct current. The device includes an SPST relay for alarm integration, making it ideal for monitoring CO levels in commercial and industrial settings. It is vital for safety in environments where carbon monoxide exposure is a risk.

• Visual LED indication of carbon monoxide levels
• Analog 0-10 VDC output signal
• SPST relay output for alarm systems

Product Highlights

This sensor is essential for early detection of hazardous CO levels.

Product Information

Standard Information

• Application: Commercial Building, Industrial Site, Hospital, Mine, Aircraft
• Warranty: 1 year

Technical Specifications

• Measurement Range: 0 - 200 ppm
• Output Signal: 0-10V, Analog 4-20 mA @ 600Ω
• Supply Voltage: 18-28 VAC @ 2.5 VA, 50/60 Hz or 18-30 VDC @ 104 mA
• Accuracy CO: ±2.5% full scale
• Visual Indication: LED flashes above 20 ppm
• Operating Temperature: 32°F to 122°F
• Dimensions Duct: 4.5H x 2.8W x 6.9D inches
• Weight Duct: 0.55 lb
