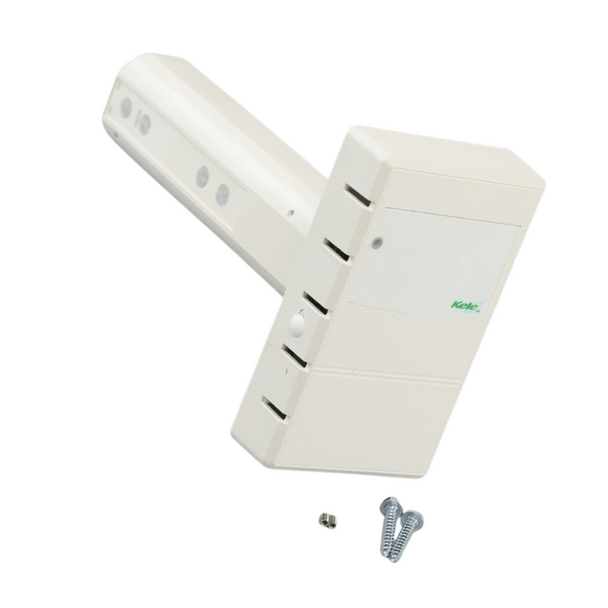

KELE KCD-D-V-T24 Carbon Dioxide Sensor Duct Mount 0-10 VDC

Product Description

The KELE KCD-D-V-T24 is a carbon dioxide sensor designed for duct mounting. It measures CO2 levels in various environments such as greenhouses, labs, and HVAC applications. This sensor provides accurate readings to support demand-controlled ventilation and air quality monitoring.

• Power supply options of twenty-four VAC/VDC
• Output signals available in 0-10 VDC and 4-20 mA
• CO2 measurement range from zero to two thousand ppm

Product Highlights

The KCD-D-V-T24 features isolated voltage analog outputs, ensuring reliability in various applications.

Product Information

Standard Information

• Application: Greenhouse, Laboratory, Food & Beverage, IAQ, Parking Garage, Agricultural
• Display: No

Technical Specifications

• Measurement Range: 0 - 2000 ppm
• Supply Voltage: 18-28 VAC at 8 VA, or 18-30 VDC at 330 mA
• Accuracy: ±3% of reading or ±40 ppm
• Sensing Technology: Non-dispersive IR (NDIR)
• Calibration Interval: 5 years
• Dimensions (Duct): 4.5 inches H x 2.8 inches W x 6.9 inches D
• Weight: 0.5 lb (0.23 Kg)
• Warranty: 1 year
• Operating Temperature: 31°F to 122°F (0°C to 50°C)
