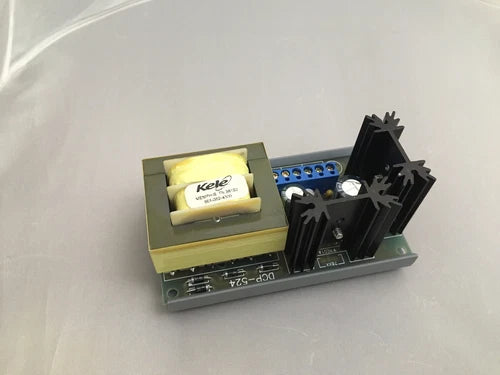

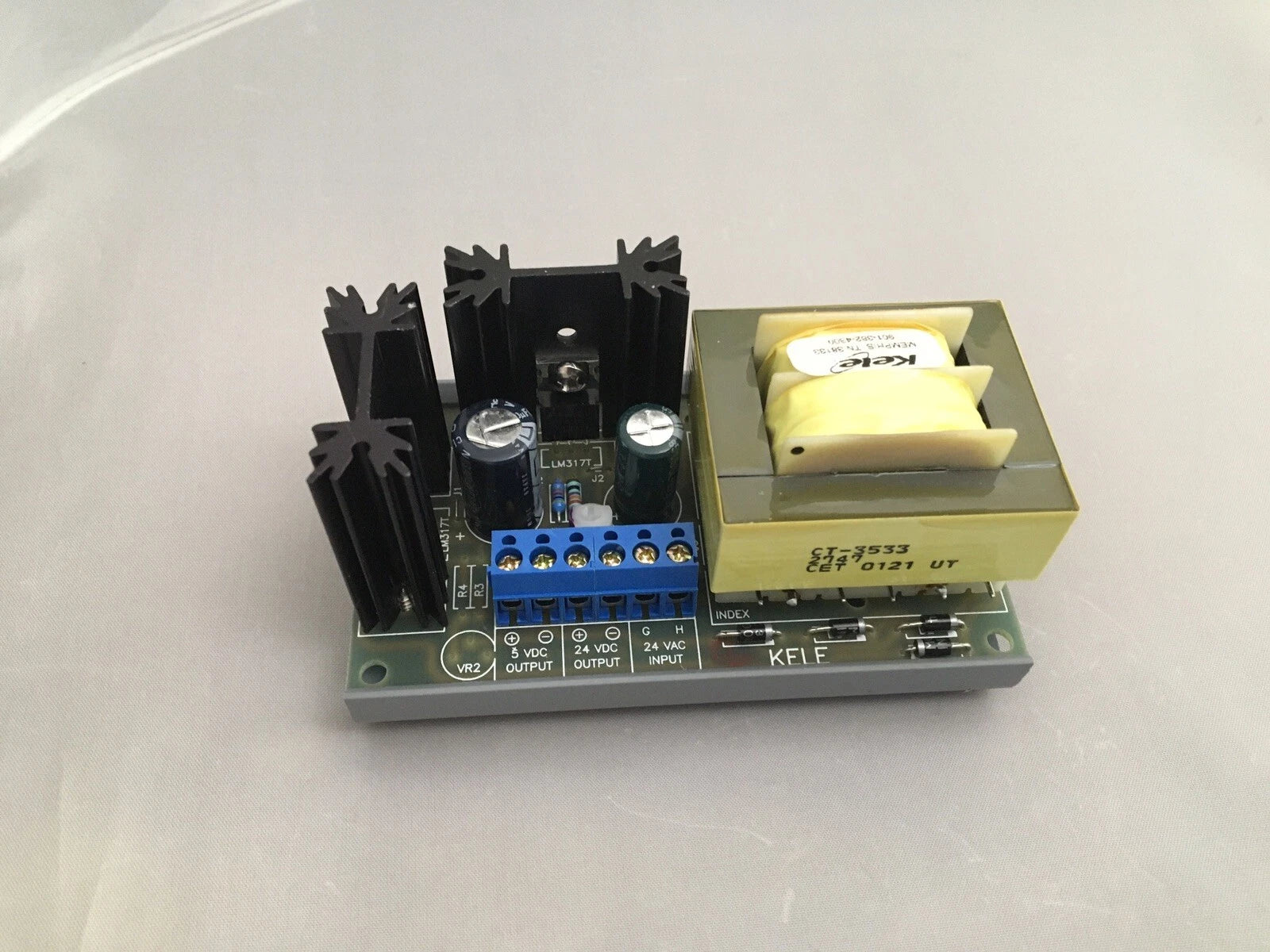

KELE DCP-524 Dual Isolated Output Power Supply

Product Description

The KELE DCP-524 is a dual output DC power supply made for building automation and HVAC systems. It converts a twenty-four VAC input into two isolated outputs of five VDC and twenty-four VDC. Each output is regulated, which means it provides consistent voltage. This feature allows for the use of both voltage outputs simultaneously if required.

• Provides dual isolated DC outputs: 5 VDC and 24 VDC
• Requires no field adjustment
• Ideal for building automation systems and HVAC applications

Product Highlights

This power supply promotes efficiency and reliability in various installations.

Product Information

Standard Information

• Brand: KELE
• Model: DCP-524

Technical Specifications

• Input Voltage: 24 VAC
• Input Current: 630 mA
• Output Voltage: 5 VDC (regulated) and 24 VDC (regulated)
• Output Current: 250 mA maximum @ 5 VDC; 80 mA maximum @ 24 VDC
• Supply Frequency: 50/60 Hz
• Operating Temperature: 32 to 130 F (0 to 55 C)
• Operating Humidity: 95% RH non-condensing
• Mounting Type: Snap Track, Panel
• Dimensions: 2.38H x 4.0W x 2.0D (6.0 x 10.2 x 5.0 cm)
• Weight: 0.9 lb (0.4 Kg)
• Warranty: 1 year
