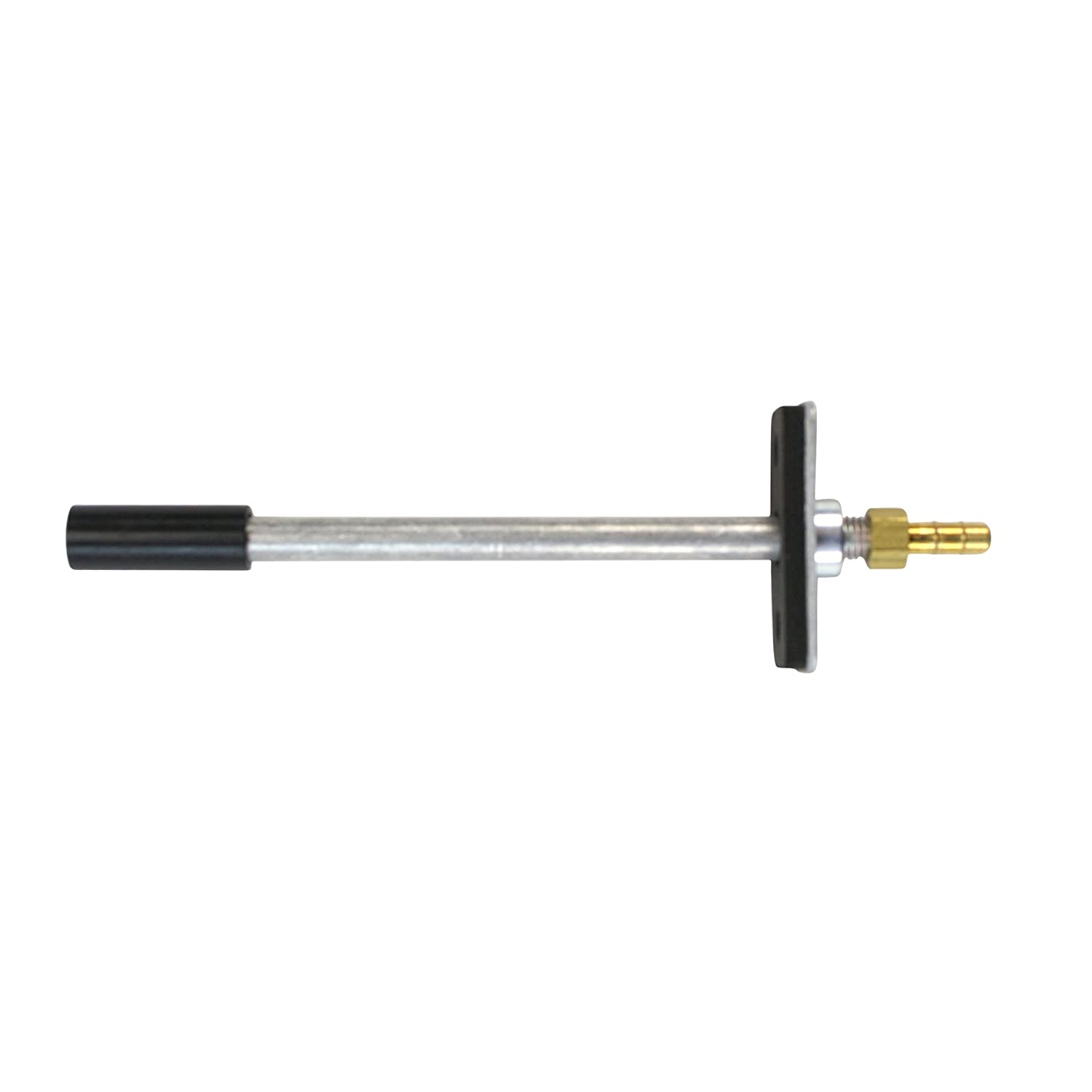

KELE A5201A1 Static Pressure Probe

Product Description

The KELE A5201A1 is a static pressure probe suitable for use with pressure transmitters and pressure switches. This probe is ideal for monitoring applications such as filter conditions, duct static pressure levels, and room pressurization evaluations. It measures static pressure effectively within ducts, plenums, or air handlers and comes with a port connection that interfaces smoothly with pressure sensors.

• Designed for duct static pressure sensing.
• Features a quarter-inch brass hose barb port connection.
• Constructed with materials suitable for extended use.

Product Highlights

This pressure probe supports critical monitoring tasks, ensuring reliable performance in HVAC applications.

Product Information

Standard Information

• Brand: KELE
• MPN: A5201A1

Technical Specifications

• Mount: Duct
• Sensor Type: Pressure
• Type: Pressure Pick-Up
• Size: 4 inches
• Operating Temperature: A-520: 482°F (250°C) max., A-523: 32°F to 158°F (0°C to 70°C)
• Materials Of Construction: 6061T-6 Aluminum Alloy with neoprene gasket (A-520)
• Enclosure Rating: UL 94-V-0 flame retardant ABS plastic, NEMA 1 (A-523)
• Port Connections: ¼ brass hose barb
• Pressure Range: A-520: 10 psid (69 kPa), A-523: 10 psid (69 kPa)
• Probe Lengths: 4 inches (10.2 cm) and 8 inches (20.3 cm)
• Approvals: CE, RoHS
• Weight: A-520: 1.5 lb (0.7 Kg), A-523: 0.25 lb (0.1 Kg)
• Warranty: 5 years
