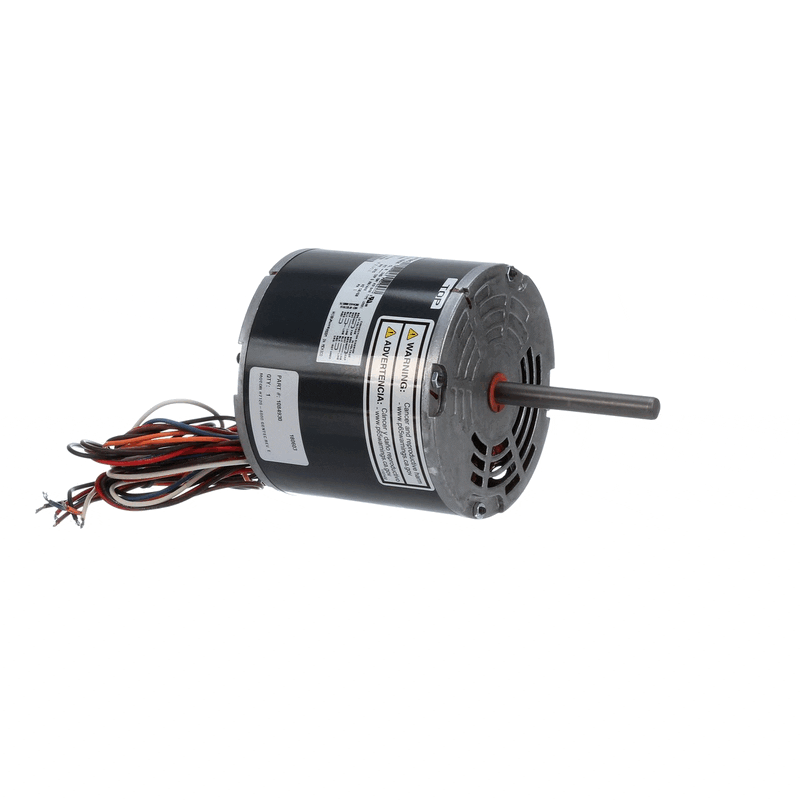

Keeprite Refrigeration 1084930 Motor 1/3 Hp 208-230V

Product Description

The Keeprite Refrigeration 1084930 is a single-phase OEM replacement motor that converts electrical energy into mechanical energy for refrigeration equipment. Rated at 1/3 HP and designed to operate on 208-230 volts at 50-60 Hz, it runs at 1075 RPM and draws 1.10 to 2.10 amps depending on voltage supply. The motor features thermal protection built in to guard against overheating during operation. At 15.065 pounds and with a top-mount configuration, it is suited for direct-drive fan and blower applications found in commercial and light commercial refrigeration systems. Licensed HVAC and refrigeration technicians are the typical installers for this type of component.

This motor is intended for use in refrigeration systems where an OEM-equivalent single-phase motor is required. Its 208-230V dual-voltage capability makes it compatible with common North American commercial power supplies operating at both 50 Hz and 60 Hz. The top-mount configuration suits condenser fan or evaporator fan assemblies in reach-in coolers, walk-in units, and similar refrigeration equipment manufactured or distributed under the Keeprite Refrigeration brand.

Key Features

• Single-phase, 208-230V dual-voltage operation at 50-60 Hz
• 1/3 HP output at 1075 RPM for direct-drive fan applications
• Built-in thermal protection guards against overheating
• Top-mount configuration for standard refrigeration fan assemblies
• cURus certified for safety compliance in North American installations
• OEM replacement ensuring fit and performance to original specifications

Compatibility

Designed as an OEM-style replacement motor for Keeprite Refrigeration equipment requiring a single-phase, 1/3 HP, 208-230V motor with a top-mount configuration.

Installation Notes

Installation should be performed by a licensed HVAC or refrigeration technician. Disconnect and lock out all electrical power to the unit before removing the existing motor or making any wiring connections. Verify that the supply voltage and phase match the motor nameplate before energizing. Ensure the replacement motor is securely mounted and that all electrical connections are made per applicable local codes and NEC requirements.

Technical Specifications

• Voltage: 208-230 volts
• Phase: Single Phase
• Frequency: 50-60 Hz
• Power: 1/3 HP
• Speed: 1075 RPM
• Current: 1.10/2.10 amps
• Capacitance: 5 MFD
• Thermal Protection: Yes
• Configuration: Top Mount
• Certification: cURus
• Length: 9.9 inches
• Width: 9.9 inches
• Height: 6.12 inches
• Weight: 15.065 pounds

Standard Information

• Brand: Keeprite Refrigeration
• Manufacturer Part Number: 1084930
