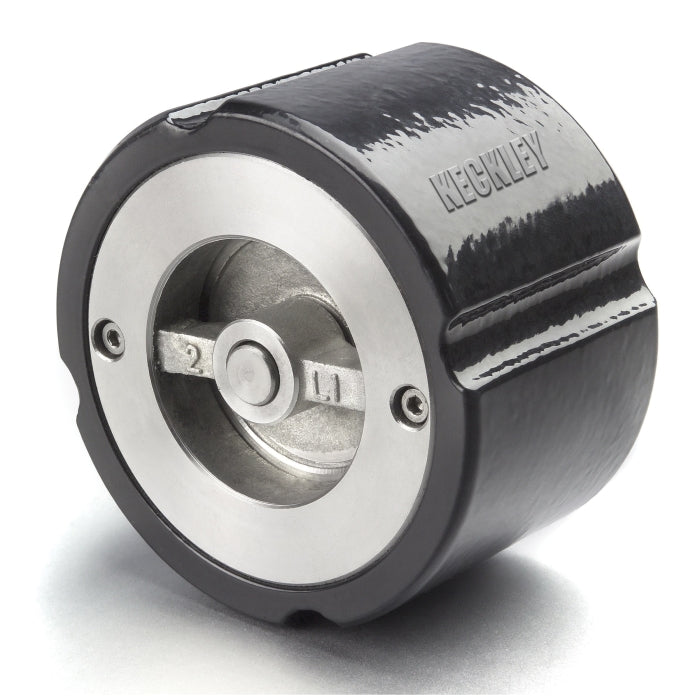

Keckley CW1F-CI-B2334-800 Silent Check Valve 5 in Nominal

Product Description

The Keckley CW1F-CI-B2334-800 is a silent check valve designed to prevent liquid flow reversal in pipelines. This model is suitable for liquid applications only. For other applications like natural gas or steam, consider using the double disc wafer check valve model.

• Compatible with gas, oil, and water media
• Features a cast iron body with bronze and stainless steel trim
• Rated for pressures up to 500 psi

Product Highlights

This dual-rated silent check valve is designed for both vertical and horizontal applications, ensuring versatility in various installations.

Product Information

Standard Information

• Brand: Keckley
• Manufacturer: Keckley

Technical Specifications

• MPN: CW1F-CI-B2334-800
• Body Material: Cast Iron
• Trim Material: Bronze/304 Stainless Steel
• Nominal Size: 5 in
• Pressure Rating: 500 psi
• Pressure Class: 125/250 lb
• Temperature Rating: 150 deg F
• Inlet to Outlet Length: 4-5/8 in
• End Style: Wafer
• Finish: Epoxy Coated
• Media: Gas/Oil/Water
• Dimensions: 3/4 in Bolt Dia
• Series: Style CW
• Type: Dual Rated
• Domestic/Import: Import
