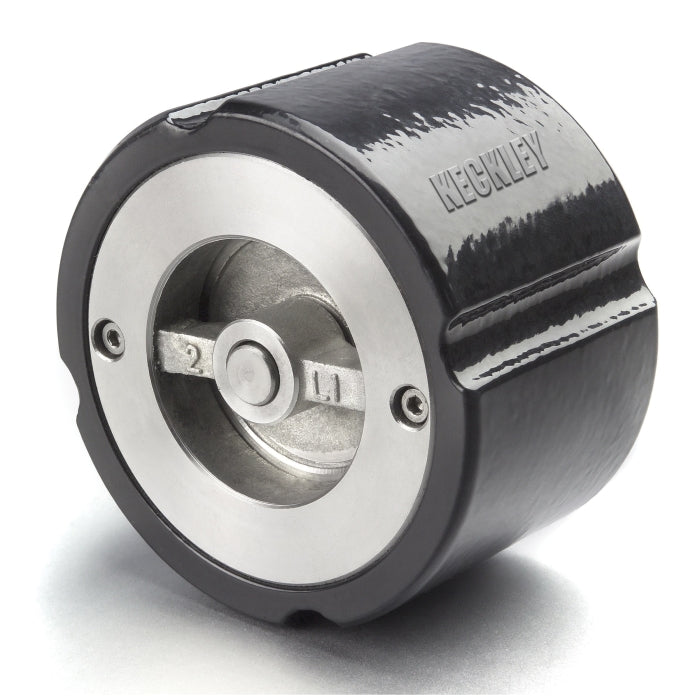

Keckley CW1F-CI-B2334-600 Silent Check Valve 6 in Nominal Dual Rated

Product Description

The Keckley CW1F-CI-B2334-600 is a dual rated silent check valve designed to protect pipelines from liquid flow reversal. This valve is made for liquid applications and is suitable for gas, oil, and water media.

• Constructed of cast iron for durability.
• Features a wafer end style for easy installation.
• Operates effectively under pressure ratings up to 500 psi.

Product Highlights

Utilizes a spring mechanism to automatically close the disc when there is no flow, preventing water hammer and reverse flow.

Product Information

Standard Information

• Brand: Keckley
• Type: Dual Rated

Technical Specifications

• Body Material: Cast Iron
• Nominal Size: 6 in
• Pressure Rating: 500 psi
• Pressure Class: 125/250 lb
• End Style: Wafer
• Temperature Rating: 150 deg F
• Media: Gas/Oil/Water
• Inlet to Outlet Length: 5-9/16 in
• Trim Material: Bronze/304 Stainless Steel
• Dimensions: 3/4 in Bolt Dia
• Finish: Epoxy Coated
• Import: Yes
