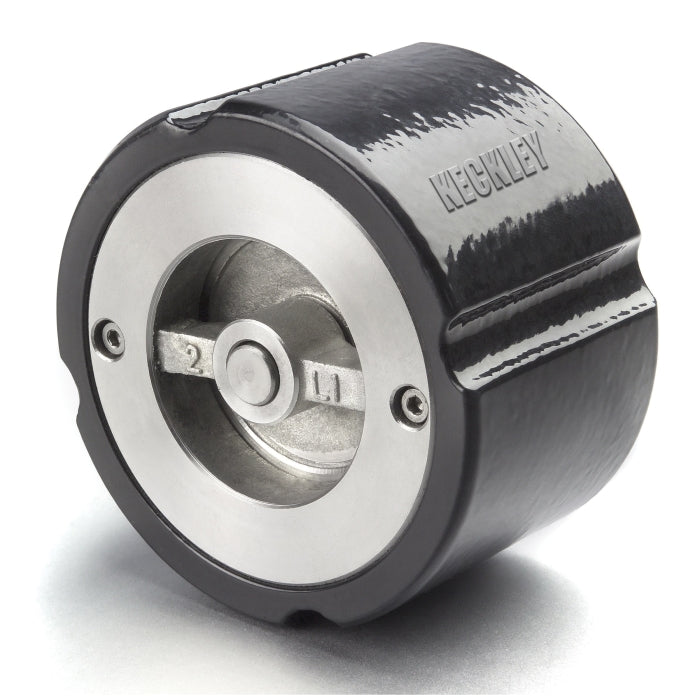

Keckley CW1F-CI-B2334-400 4 in Dual Rated Silent Check Valve

Product Description

Keckley CW1F-CI-B2334-400 is a dual-rated silent check valve designed to prevent liquid flow reversal in pipelines. It is suitable for liquid applications and has a wafer end style. The valve can handle a pressure rating of 500 psi, making it ideal for various operational needs including gas, oil, and water.

• Constructed from durable cast iron.
• Rated for 125/250 lb pressure class.
• Designed for easy field service without special tools.

Product Highlights

This valve is important for protecting systems from backflow and water hammer. With a compact design and reliable operation, it is a trusted choice for trade professionals.

Product Information

Standard Information

• Brand: Keckley
• Type: Dual Rated

Technical Specifications

• Body Material: Cast Iron
• End Style: Wafer
• Finish: Epoxy Coated
• Nominal Size: 4 in
• Inlet to Outlet Length: 4 in
• Media: Gas/Oil/Water
• Pressure Class: 125/250 lb
• Pressure Rating: 500 psi
• Temperature Rating: 150 deg F
• Trim Material: Bronze/304 Stainless Steel
• Dimensions: 5/8 in Bolt Dia
• Domestic/Import: Import
