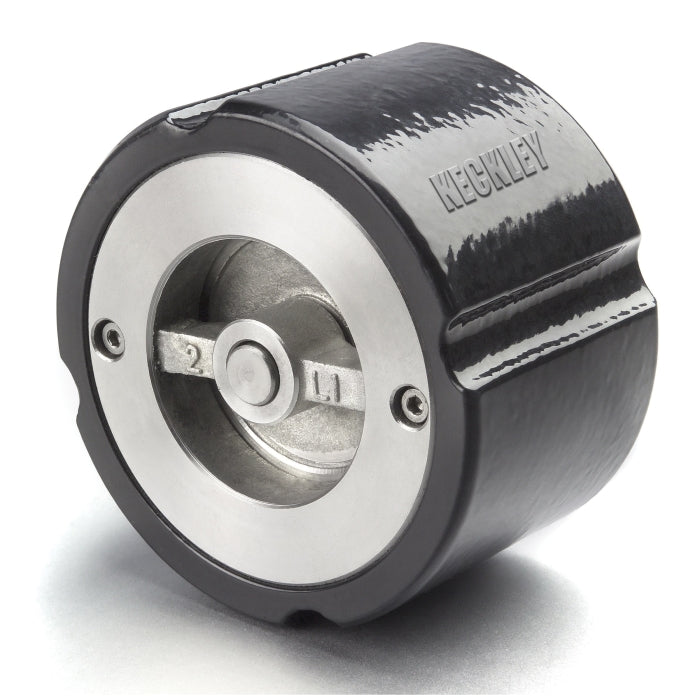

Keckley CW1F-CI-B2334-200 Silent Check Valve Dual Rated 2 in

Product Description

The Keckley CW1F-CI-B2334-200 is a silent check valve designed to prevent liquid flow reversal. This valve is suitable for liquid applications only. For gases and steam, refer to the double disc wafer check valve.

• Dual rated for gas, oil, and water.
• Constructed from cast iron with epoxy coating.
• Inlet to outlet length measures two and five-eighths inches.

Product Highlights

This silent check valve closes automatically at zero flow to prevent backflow and water hammer.

Product Information

Standard Information

• Brand: Keckley
• MPN: CW1F-CI-B2334-200

Technical Specifications

• Body Material: Cast Iron
• Dimensions: 5/8 in Bolt Dia
• Domestic/Import: Import
• End Style: Wafer
• Finish: Epoxy Coated
• Inlet to Outlet Length: 2-5/8 in
• Media: Gas/Oil/Water
• Nominal Size: 2 in
• Pressure Class: 125/250 lb
• Pressure Rating: 500 psi
• Series: Style CW
• Temperature Rating: 150 deg F
• Trim Material: Bronze/304 Stainless Steel
• Type: Dual Rated
