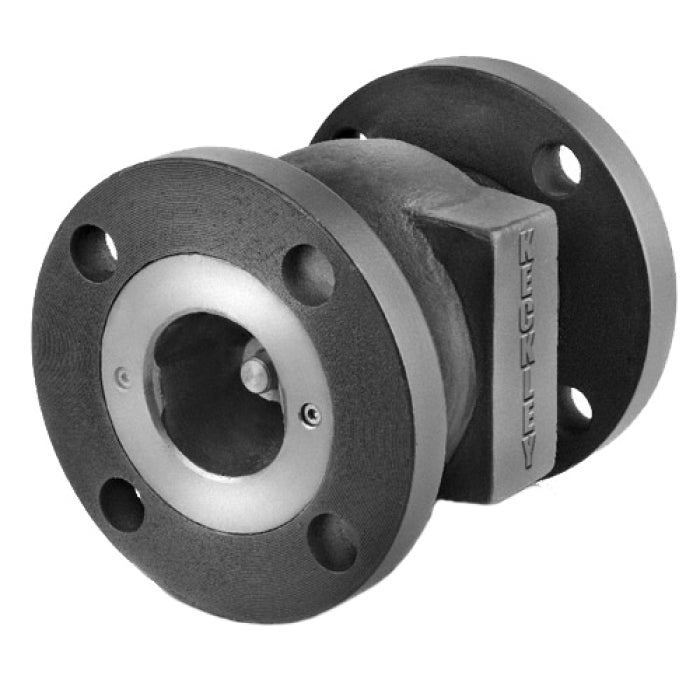

Keckley CG2R-CS-36336-800 Globe Style Silent Check Valve 8 in

Product Description

Keckley CG2R-CS-36336-800 is a globe style silent check valve designed to protect pipes from liquid flow reversal. This valve is suitable for various liquid applications. It offers a reliable mechanism for preventing reverse flow and water hammer.

The valve features a cast carbon steel body and is equipped with a cast 316 stainless steel seat and disc trim. Its design ensures durability and effectiveness in fluid movement control.

• Constructed from cast carbon steel for strength.
• Suitable for gas, oil, and water media.
• Pressure rating up to 285 psi.

Product Highlights

This valve is engineered for easy installation and maintenance, ensuring long-term performance in demanding environments.

Product Information

Standard Information

• Brand: Keckley
• Manufacturer: Keckley

Technical Specifications

• Body Material: Cast Carbon Steel
• Dimensions: 13-1/2 in Dia
• Finish: Epoxy Coated
• Inlet to Outlet Length: 12 in
• Media: Gas/Oil/Water
• Nominal Size: 8 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psi
• Series: Style CG
• Temperature Rating: 100 deg F
• Trim Material: Cast 316 Stainless Steel Seat/Disc
• Type: Globe Style
