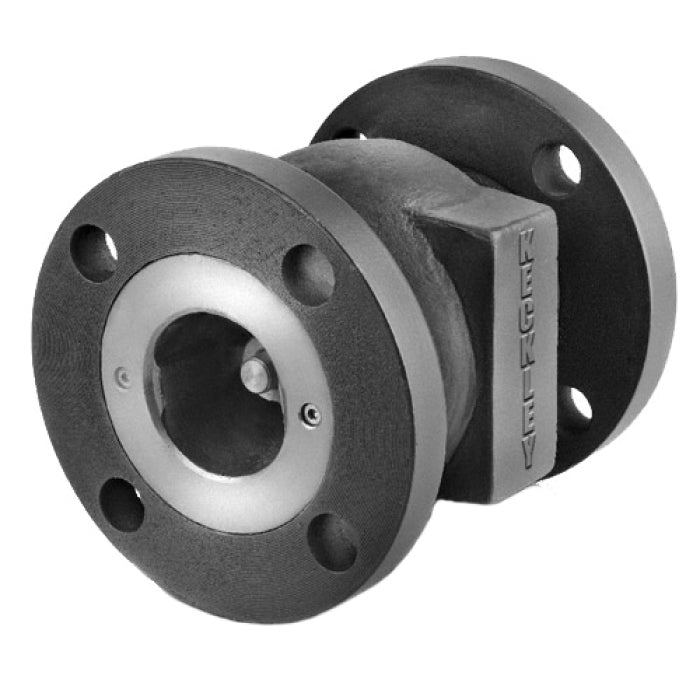

Keckley CG2R-CS-36336-300 Globe Style Silent Check Valve 3 in

Product Description

The Keckley CG2R-CS-36336-300 is a globe style silent check valve designed to prevent liquid flow reversal. This product is suitable for liquid applications only and should not be used for gas or steam services. The valve features a cast carbon steel body and is equipped with a cast 316 stainless steel seat and disc trim.

• Globe style design for effective flow management
• Constructed from durable materials for reliable performance
• Features a 7-1/2 inch inlet to outlet length

Product Highlights

This silent check valve ensures that your pipeline operates safely without the risk of backflow, protecting your system integrity.

Product Information

Standard Information

• Brand: Keckley
• Type: Globe Style

Technical Specifications

• Body Material: Cast Carbon Steel
• Dimensions: 7-1/2 inches Diameter
• Finish: Epoxy Coated
• Inlet to Outlet Length: 7-1/2 inches
• Media: Gas/Oil/Water
• Nominal Size: 3 inches
• Pressure Class: 150 lb
• Pressure Rating: 285 psi
• Series: Style CG
• Temperature Rating: 100 degrees F
• Trim Material: Cast 316 Stainless Steel Seat/Disc
