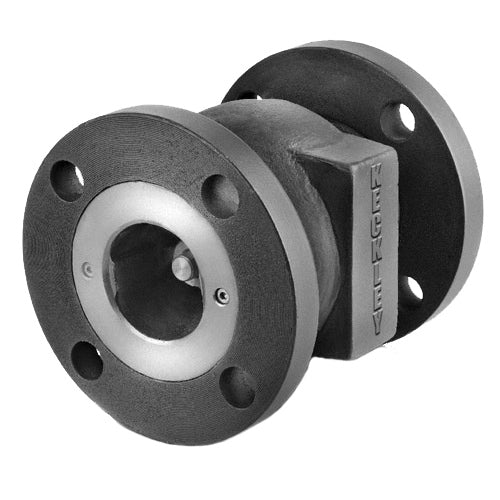

Keckley CG2R-CS-36336-250 Globe Silent Check Valve 2-1/2 in 150 lb

Product Description

The Keckley CG2R-CS-36336-250 is a globe style silent check valve that effectively prevents liquid flow reversal in pipelines. This valve is so engineered to serve liquid applications optimally, shielding systems from backflow. It features a cast carbon steel body and is suitable for media including gas, oil, and water.

• Constructed from durable cast carbon steel
• Designed to prevent flow reversal and water hammer
• Field serviceable without special tools

Product Highlights

This valve is designed for 2-1/2 inch nominal piping and supports applications with a pressure rating of up to 285 psi.

Product Information

Standard Information

• Brand: Keckley
• MPN: CG2R-CS-36336-250

Technical Specifications

• Body Material: Cast Carbon Steel
• Dimensions: 7 in Dia
• Finish: Epoxy Coated
• Inlet to Outlet Length: 7 in
• Media: Gas/Oil/Water
• Nominal Size: 2-1/2 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psi
• Series: Style CG
• Temperature Rating: 100 deg F
• Trim Material: Cast 316 Stainless Steel Seat/Disc
• Type: Globe Style
