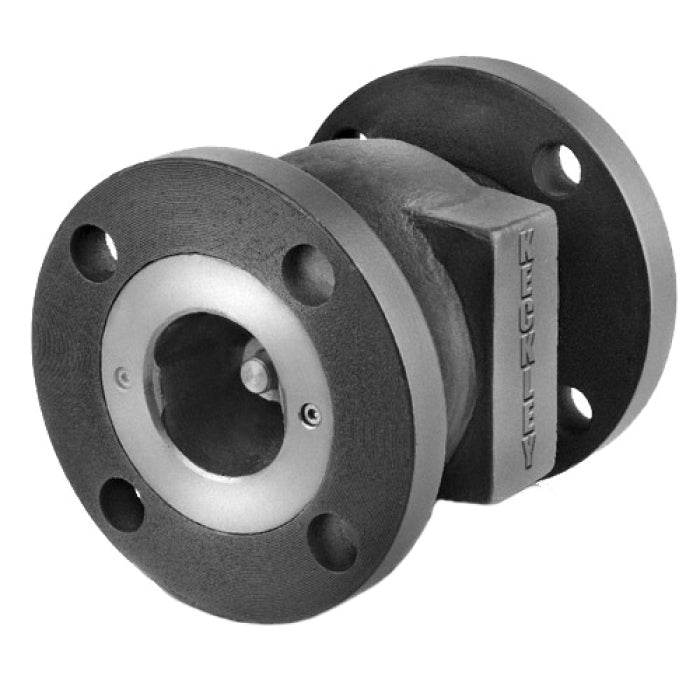

Keckley CG1F-CI-B2334-912 Globe Style Silent Check Valve 12 in

Product Description

Keckley CG1F-CI-B2334-912 is a globe style silent check valve designed to prevent liquid flow reversal in pipelines. This valve is suitable for applications involving gas, oil, and water. The cast iron body construction ensures durability and reliability, making it an ideal choice for various liquid applications.

• Constructed from cast iron for durability
• Chech valve suitable for gas, oil, and water
• Flat face flanged design for easy installation

Product Highlights

The Keckley CG1F-CI-B2334-912 features a spring-operated disc that automatically closes to prevent backflow.

Product Information

Standard Information

• Brand: Keckley
• MPN: CG1F-CI-B2334-912

Technical Specifications

• Body Material: Cast Iron
• Nominal Size: 12 in
• End Style: Flat Face Flanged
• Finish: Epoxy Coated
• Dimensions: 19 in
• Inlet to Outlet Length: 20-1/4 in
• Media: Gas/Oil/Water
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Temperature Rating: 150 deg F
• Series: Style CG
• Trim Material: Cast Bronze Seat/Disc
• Type: Globe Style
