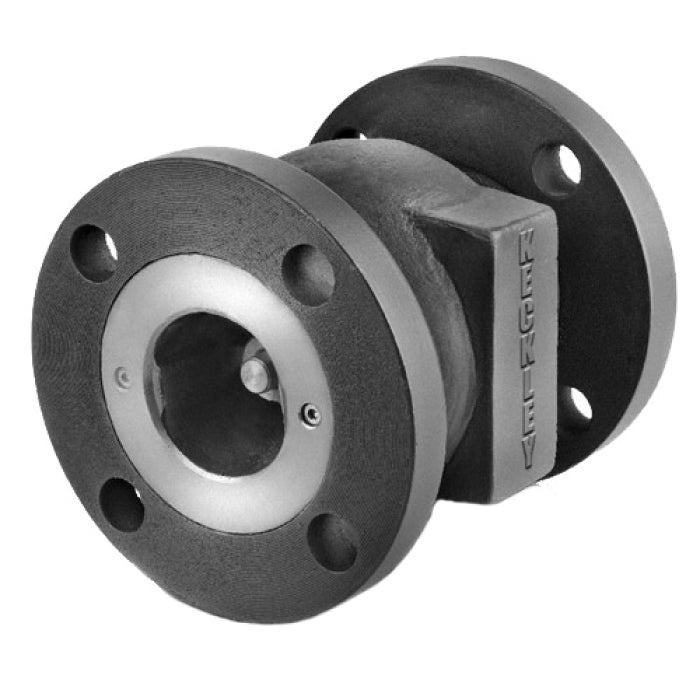

Keckley CG1F-CI-B2334-910 Globe Style Silent Check Valve 10 in

Product Description

The Keckley CG1F-CI-B2334-910 is a globe style silent check valve. This valve is designed to protect pipelines from liquid flow reversal. It is suitable for liquid applications. For different applications such as gas or steam, consider other valve types.

• 10 inch nominal size
• Flat face flanged end style
• Cast iron body with epoxy coating

Product Highlights

This valve features a robust construction that ensures reliable performance. It helps in preventing reverse flow and water hammer.

Product Information

Standard Information

• Brand: Keckley
• MPN: CG1F-CI-B2334-910

Technical Specifications

• Body Material: Cast Iron
• Dimensions: 16 in Dia
• End Style: Flat Face Flanged
• Finish: Epoxy Coated
• Inlet to Outlet Length: 16-1/4 in
• Media: Gas/Oil/Water
• Nominal Size: 10 in
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Series: Style CG
• Temperature Rating: 150 deg F
• Trim Material: Cast Bronze Seat/Disc
• Type: Globe Style
