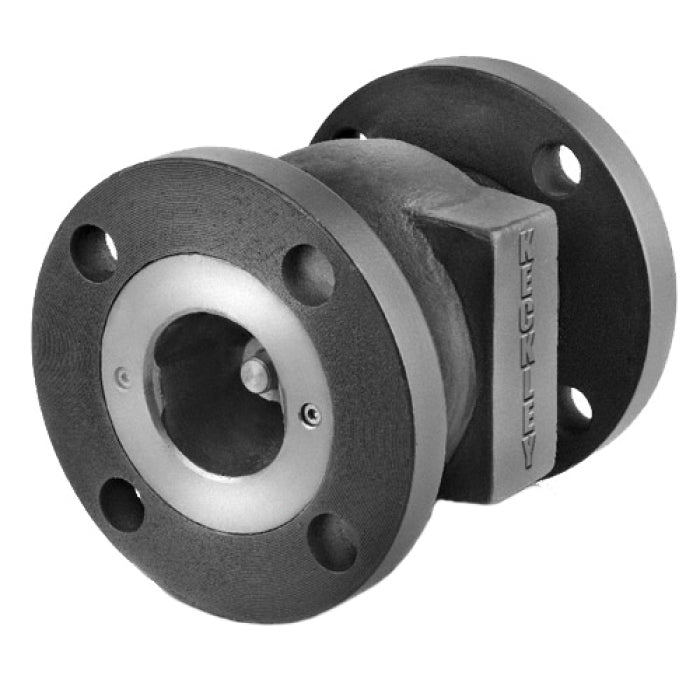

Keckley CG1F-CI-B2334-800 Globe Style Check Valve 8 in 125 lb

Product Description

The Keckley CG1F-CI-B2334-800 is a globe style silent check valve designed to prevent reverse flow in liquid pipelines. This valve is suitable for various liquid applications, ensuring durability and reliability. Constructed from robust cast iron, the valve features a flat face flanged end style and is epoxy coated for added protection.

• 8-inch nominal size for effective flow control
• 125 lb pressure class, rated for 200 psi
• Cast bronze seat and disc trim for enhanced performance

Product Highlights

The Keckley silent check valve protects your pipeline against flow reversal, ensuring smooth operation.

Product Information

Standard Information

• Brand: Keckley
• MPN: CG1F-CI-B2334-800

Technical Specifications

• Body Material: Cast Iron
• Nominal Size: 8 in
• Dimensions: 13-1/2 in Dia
• End Style: Flat Face Flanged
• Finish: Epoxy Coated
• Media: Gas/Oil/Water
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Temperature Rating: 150 deg F
• Inlet to Outlet Length: 13-1/2 in
• Trim Material: Cast Bronze Seat/Disc
• Series: Style CG
