Keckley CG1F-CI-B2334-600 Silent Check Valve 6 in Nominal 125 lb

Product Description

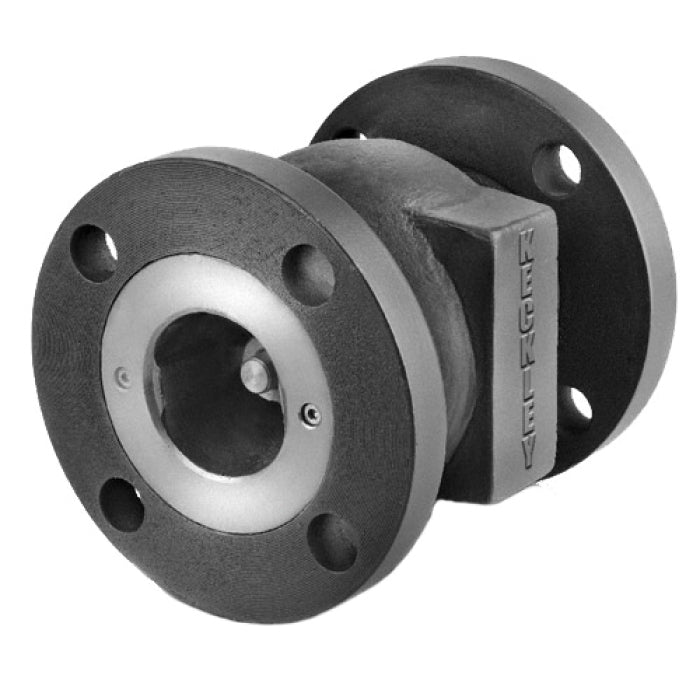

Keckley CG1F-CI-B2334-600 is a globe style silent check valve designed to prevent liquid flow reversal in pipelines. This valve is suitable for liquid applications and constructed from durable materials to ensure reliability. It provides a robust solution for maintaining directional flow in a variety of systems.

• Suitable for liquid applications only
• Flat face flanged end style
• Designed to meet ASME specifications

Product Highlights

This silent check valve features a spring that automatically closes the disc when there is no flow, reducing the risk of water hammer. Its cast iron body and epoxy coating provide significant durability and performance.

Product Information

Standard Information

• Brand: Keckley
• MPN: CG1F-CI-B2334-600

Technical Specifications

• Body Material: Cast Iron
• Nominal Size: 6 in
• Dimensions: 11 in Dia
• End Style: Flat Face Flanged
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Temperature Rating: 150 deg F
• Inlet to Outlet Length: 10-1/2 in
• Media: Gas/Oil/Water
• Trim Material: Cast Bronze Seat/Disc
• Series: Style CG
