Product Description

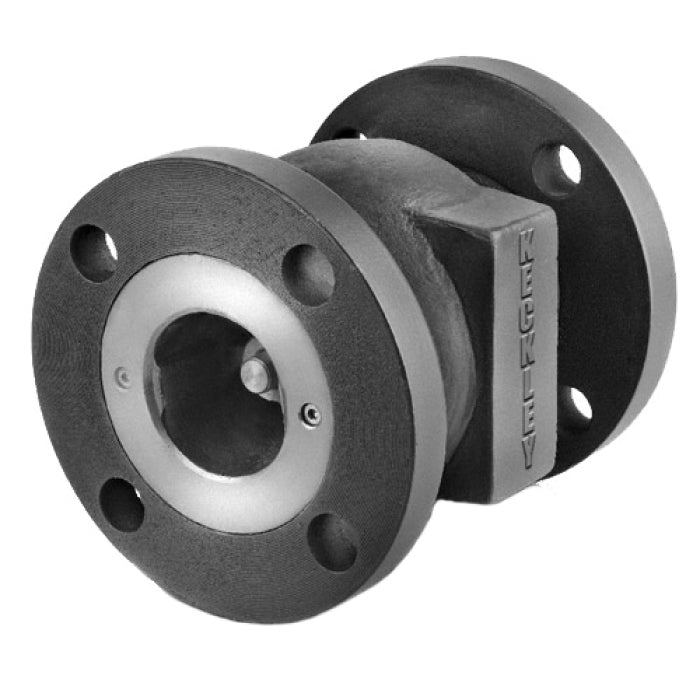

The Keckley CG1F-CI-B2334-300 is a globe style silent check valve designed to prevent liquid flow reversal in pipelines. This check valve is optimal for liquid applications. It features a flat face flanged end and is constructed from durable cast iron.
- 3 inch nominal size
- Operates under a pressure class of 125 lb
- Covers media including gas, oil, and water
Product Highlights
This valve is engineered to automatically close the disc during zero flow, reducing the risk of water hammer. The design ensures reliable service over time.
Product Information
Standard Information
-
Brand: Keckley
-
MPN: CG1F-CI-B2334-300
Technical Specifications
-
Body Material: Cast Iron
-
Dimensions: 7-1/2 in Dia
-
End Style: Flat Face Flanged
-
Finish: Epoxy Coated
-
Inlet to Outlet Length: 7-1/2 in
-
Media: Gas/Oil/Water
-
Nominal Size: 3 in
-
Pressure Class: 125 lb
-
Pressure Rating: 200 psi
-
Series: Style CG
-
Temperature Rating: 150 deg F
-
Trim Material: Cast Bronze Seat/Disc
-
Type: Globe Style
