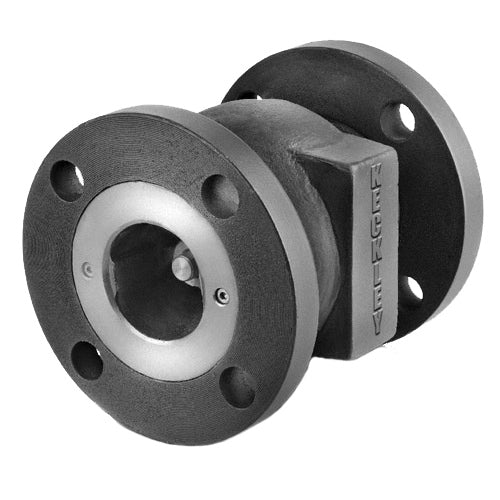

Keckley CG1F-CI-B2334-250 Globe Style Silent Check Valve 2-1/2 in

Product Description

The Keckley CG1F-CI-B2334-250 is a globe style silent check valve designed to prevent unwanted liquid flow reversal in pipelines. This valve is suitable for liquid applications and features a flat face flanged end. It is constructed from cast iron and is engineered for high durability.

• Suitable for applications involving gas, oil, and water.
• Pressure rated for 200 psi and a temperature rating of up to 150 degrees Fahrenheit.
• Field serviceable without special tools.

Product Highlights

This silent check valve is ideal for liquid applications where backflow prevention is crucial. Its compact design facilitates easy installation and maintenance.

Product Information

Standard Information

• Brand: Keckley
• MPN: CG1F-CI-B2334-250

Technical Specifications

• Body Material: Cast Iron
• Dimensions: 7 in Dia
• End Style: Flat Face Flanged
• Finish: Epoxy Coated
• Inlet to Outlet Length: 7 in
• Media: Gas/Oil/Water
• Nominal Size: 2-1/2 in
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Series: Style CG
• Temperature Rating: 150 degrees F
• Trim Material: Cast Bronze Seat/Disc
• Type: Globe Style
